Quick Guide for Danfoss Overhaul Kit 027F3377

This document provides an exploded view and parts list for the Danfoss Overhaul Kit (Code 027F3377), specifically designed for PM size 80 valves with a standard cone. Use this guide to identify components during maintenance and repair procedures.

Exploded View and Assembly

The provided diagram illustrates the assembly sequence of the valve components. Use this reference to identify the correct placement of parts 1 through 23 during the overhaul process.

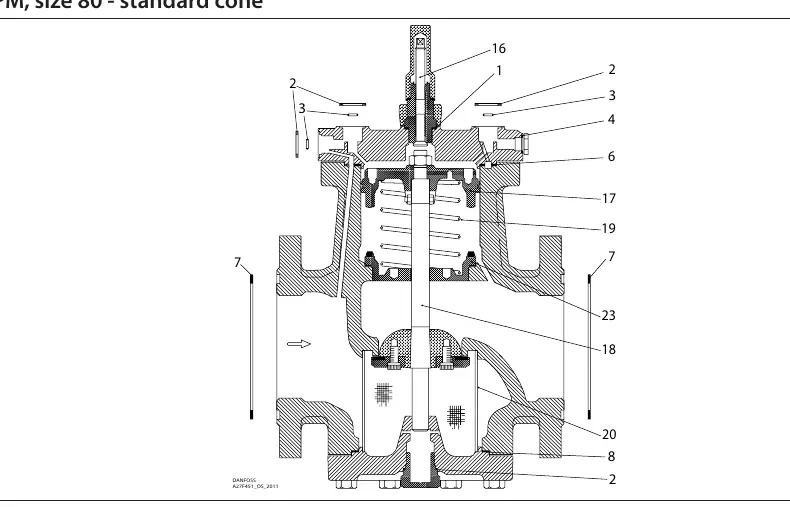

Exploded view of the PM size 80 valve assembly

Component List

The following components are included in the kit. Please verify quantities and materials before installation:

Parts 1-10: Various gaskets and seals (Fibre or Aluminium).
Parts 16-23: Internal valve components, including springs, cones, and filters.

Important Notes

Compatibility: This kit is specifically for PM size 80 valves with a standard cone.
Unused Parts: Components marked with a single asterisk (*) are included in the package but are not used for the PM size 80 standard cone configuration.
Manual Opening Device: Components marked with a double asterisk (**) are included in the manual opening device.

Manufacturer information

Danfoss A/S

Brand profile

Manufacturer website https://www.danfoss.com Support https://www.danfoss.com/en/service-and-support/ Manufacturer manuals https://www.danfoss.com/en/service-and-support/downloads/

Practical help

Common problems

Unused parts after assembly

Verify if the parts are marked with an asterisk (*). These parts are included in the kit but are not required for the PM size 80 standard cone configuration.

Before use

Verify the kit code is 027F3377.
Ensure the valve is a PM size 80 model with a standard cone.
Check all parts against the exploded diagram before starting disassembly.
Identify parts marked with (*) to avoid confusion during assembly.
