This document provides the installation and parts reference for the Danfoss 032F2322 Overhaul Kit, specifically designed for the EVRAT size 15 valve (previous design). Use this guide to identify components and their correct assembly order during maintenance.
Component Breakdown
The manual includes an exploded view diagram illustrating the assembly order of the components within the EVRAT size 15 valve. Use this diagram to identify the correct placement of parts 1 through 12 during the overhaul process.

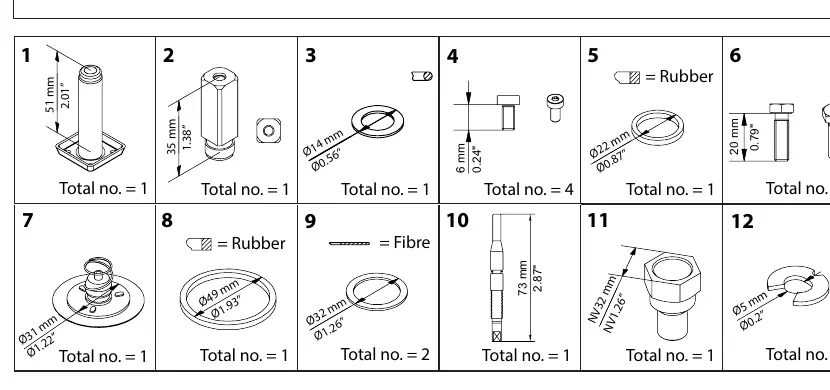

Parts List and Specifications
The kit contains the following components. Ensure all parts are present before beginning the installation:
- 1: 1 unit
- 2: 1 unit
- 3: 1 unit
- 4: 4 units
- 5: 1 unit (Rubber)
- 6: 4 units
- 7: 1 unit
- 8: 1 unit (Rubber)
- 9: 2 units (Fibre)
- 10: 1 unit
- 11: 1 unit
- 12: 1 unit
Manufacturer information
Danfoss A/S
Practical help
Common problems
Ensure the valve is an EVRAT size 15 (previous design). This kit is not compatible with other valve models or current designs.
Verify all 12 parts are present against the parts list before starting disassembly.
Before use
- Verify the valve is an EVRAT size 15 (previous design) model.
- Check that all 12 components are present in the kit.
- Ensure the work area is clean to prevent contamination of valve internals.
- Verify the material type (Rubber/Fibre) for specific seals during installation.
