Installation Guide for Danfoss 032F2339 Overhaul Kit

Quick installation guide for the Danfoss 032F2339 Overhaul Kit. Includes exploded view diagrams and a parts list for EVRA and EVRS size 20 valves.

Table of contents

Manual images

Click an image to enlarge
Exploded view diagrams for EVRA and EVRS valves Page 1 Parts list and component specifications Page 1

Quick guide from the manual

This installation guide covers the Danfoss 032F2339 Overhaul Kit, specifically designed for EVRA and EVRS valves of size 20. The document provides an exploded view of the valve assembly and a detailed parts list to assist with maintenance and repair.

Valve Overview

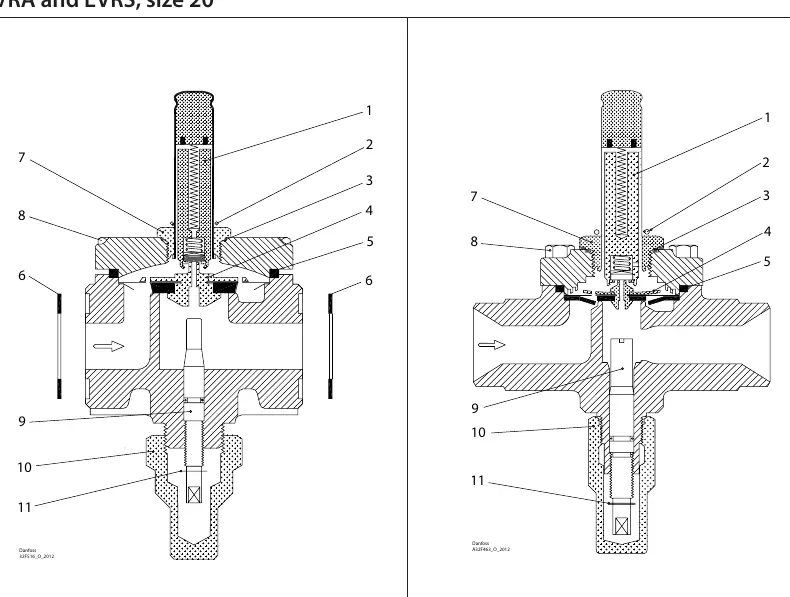

The guide features exploded view diagrams for both EVRA and EVRS valve models. These diagrams illustrate the correct positioning and assembly sequence of the internal components, numbered 1 through 11.

Exploded view diagrams for EVRA and EVRS valves
Exploded view diagrams for EVRA and EVRS valves

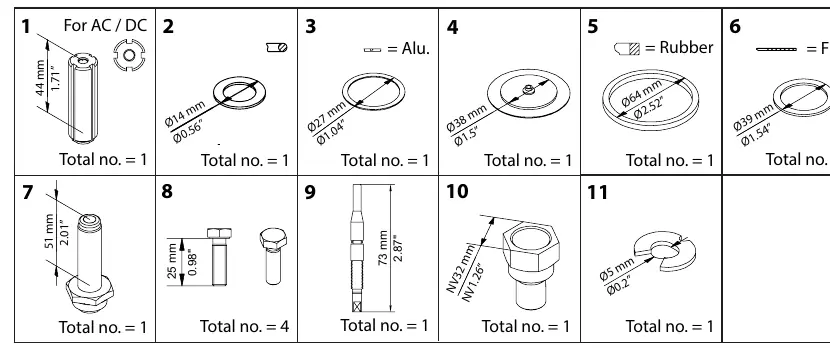

Parts List and Specifications

The overhaul kit includes 11 distinct components. When performing maintenance, ensure all parts are accounted for according to the following breakdown:

Parts list and component specifications
Parts list and component specifications
  • Components 1-11: The kit contains specific quantities for each part, ranging from single items to multiple units (e.g., 4 units for part 8).
  • Material Types: Certain components are specified by material, including Aluminium (Alu.), Rubber, and Fibre.
  • Dimensions: Key dimensions are provided for specific parts, such as diameters (e.g., 14mm, 27mm, 38mm, 64mm, 39mm, 5mm) and lengths (e.g., 44mm, 51mm, 73mm, 25mm).

Manufacturer information

Danfoss A/S

Brand profile
Manufacturer website https://www.danfoss.com Support https://www.danfoss.com/en/service-and-support/ Manufacturer manuals https://www.danfoss.com/en/service-and-support/downloads/

Practical help

Common problems

Missing components

Verify all 11 parts are present in the kit before starting assembly.

Incorrect seal installation

Ensure rubber and fibre gaskets are placed in the correct orientation as shown in the exploded diagram.

Before use

  • Verify the valve model is EVRA or EVRS size 20.
  • Check that all 11 parts listed in the kit are present.
  • Identify the material type (Rubber, Fibre, or Aluminium) for the correct seals.
  • Ensure the valve is depressurized before attempting any maintenance.
