Danfoss 027F3157 Repair Kit Installation Guide

Installation guide for the Danfoss 027F3157 repair kit, designed for PM, PML, and PMLX size 100 valves. Includes exploded view diagrams and a detailed parts list with specifications.

Table of contents

Manual images

Click an image to enlarge
PM3 valve exploded view diagram Page 1 PML valve exploded view diagram Page 1 PMLX valve exploded view diagram Page 1

Important Information

This document provides installation guidance for the Danfoss 027F3157 repair kit. This kit is specifically designed for use with PM, PML, and PMLX valves, size 100. Please ensure the valve system is depressurized and safe to work on before beginning any maintenance or repair procedures.

Valve Compatibility

The repair kit is compatible with the following valve types:

  • PM3
  • PML
  • PMLX

Note: Some parts included in the package are marked with an asterisk (*) and are not used for PM, PML/X 100 models. Do not be concerned if these parts remain after the installation is complete.

Installation Diagrams

The manual provides exploded view diagrams for the PM3, PML, and PMLX valves. These diagrams illustrate the correct placement of seals and components, which are numbered to correspond with the parts list.

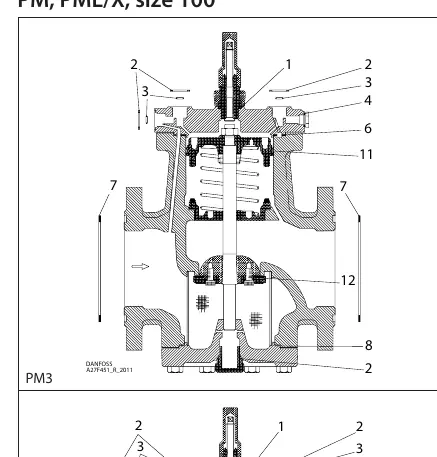

PM3 valve exploded view diagram
PM3 valve exploded view diagram

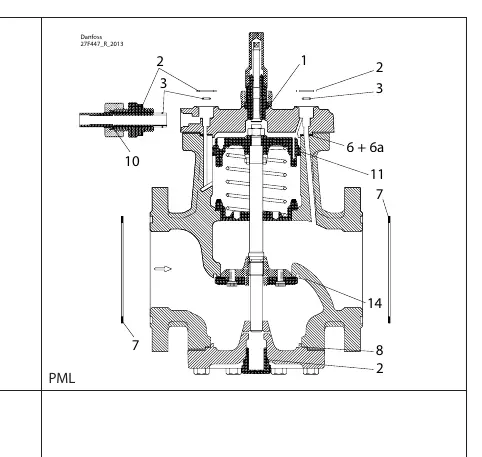

PML valve exploded view diagram
PML valve exploded view diagram

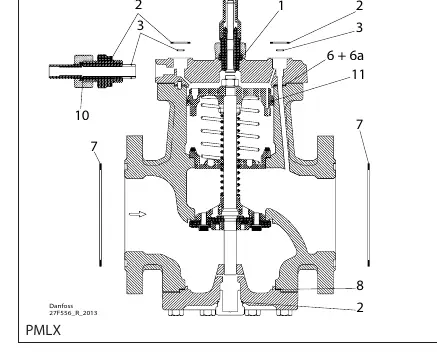

PMLX valve exploded view diagram
PMLX valve exploded view diagram

Parts List and Specifications

The kit contains various seals made of either Aluminum (Alu.) or Fibre. Each part is identified by its diameter (in mm and inches) and material type. Ensure you match the correct seal to the corresponding number in the valve assembly diagram during installation.

Manufacturer information

Danfoss A/S

Brand profile
Manufacturer website https://www.danfoss.com Support https://www.danfoss.com/en/service-and-support/ Manufacturer manuals https://www.danfoss.com/en/service-and-support/downloads/

Practical help

Common problems

Parts left over after installation

Some parts in the kit are marked with an asterisk (*) and are included in the package but are not used for PM, PML/X 100 models.

Before use

  • Verify the valve model is PM, PML, or PMLX size 100.
  • Ensure the valve system is depressurized before starting maintenance.
  • Identify all parts using the provided diagrams on page 1.
  • Check the material type (Alu or Fibre) for each seal before installation.
