This document provides the installation and parts breakdown for the Danfoss 032F2344 repair kit. This kit is specifically designed for use with EVRAT and EVRST valves, size 15. Use the provided diagrams to identify the correct placement of components during the repair process.
Component Overview

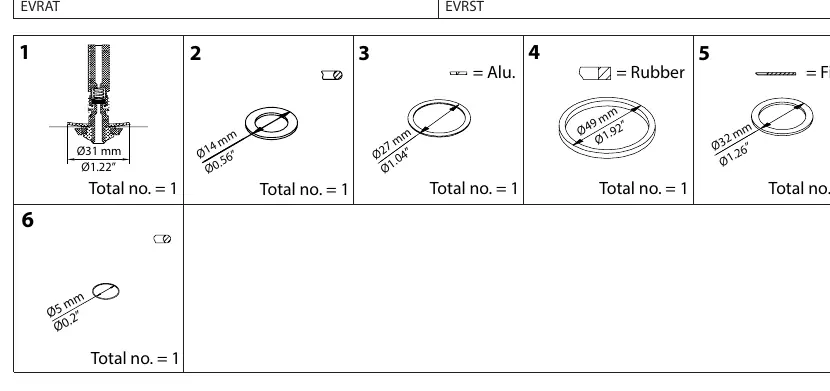

The repair kit contains 6 distinct components. Ensure all parts are accounted for before beginning the repair:
- Part 1: Ø31 mm (Ø1.22"), Quantity: 1
- Part 2: Ø14 mm (Ø0.56"), Quantity: 1
- Part 3: Ø27 mm (Ø1.04"), Material: Aluminium, Quantity: 1
- Part 4: Ø49 mm (Ø1.92"), Material: Rubber, Quantity: 1
- Part 5: Ø32 mm (Ø1.26"), Material: Fibre, Quantity: 2
- Part 6: Ø5 mm (Ø0.2"), Quantity: 1
Installation Diagrams

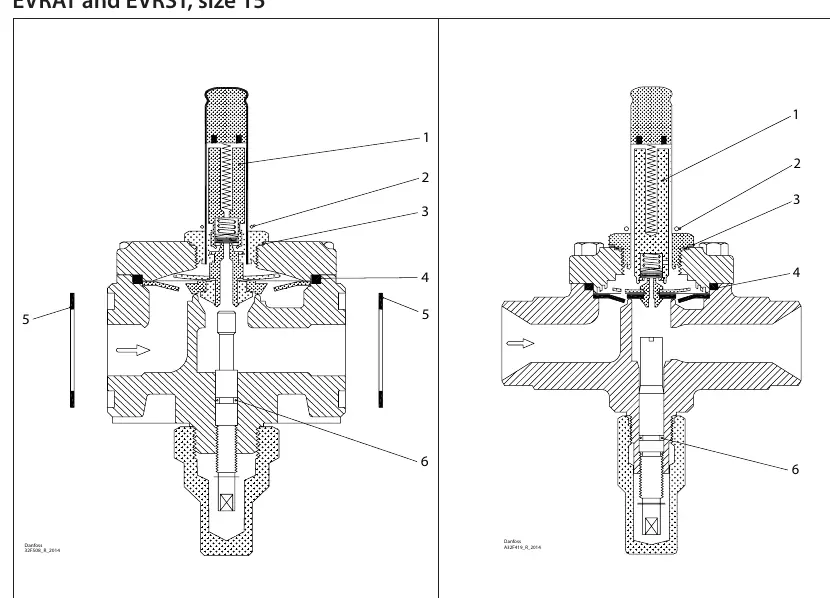

The manual includes exploded view diagrams for both EVRAT and EVRST valve types. These diagrams illustrate the correct placement of the components numbered 1 through 6 within the valve assembly. Refer to the specific diagram corresponding to your valve model (EVRAT or EVRST) to ensure correct installation.
Manufacturer information
Danfoss A/S
Practical help
Before use
- Verify the valve model is EVRAT or EVRST size 15.
- Ensure the repair kit code is 032F2344.
- Check all 6 components are present in the kit.
- Identify material types (Alu, Rubber, Fibre) for correct placement.
Images and diagrams
- The diagram shows an exploded view of the EVRAT and EVRST valves.
- Numbers 1-6 correspond to the parts list provided in the kit.
