Installation Guide for Danfoss TEA and TEAT Element Repair Kit

Quick installation and parts guide for Danfoss TEA and TEAT element repair kits. Includes torque specifications, component breakdown, and assembly diagrams for sizes 20 and 85.

Table of contents

Manual images

Click an image to enlarge
TEA valve element assembly diagram Page 1 TEAT valve element assembly diagram Page 1 Parts list and material specifications Page 1

Quick guide from the manual

This document provides the installation and parts breakdown for Danfoss TEA and TEAT element repair kits. It covers models 068G3250, 068G3252, 068G3260, 068G3261, and 068G3262 for valve sizes 20 and 85. Use this guide to identify components and ensure correct assembly torque.

Installation and Torque Specifications

The manual provides specific torque requirements for the assembly of the valve element. Proper torque is critical for the integrity of the valve. Ensure the following settings are applied:

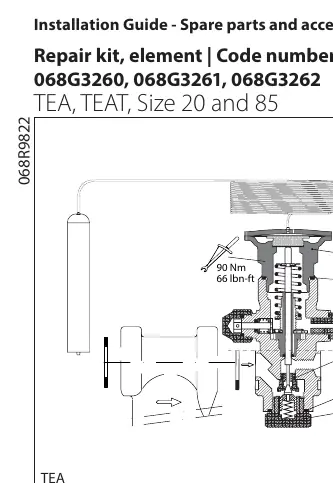

TEA valve element assembly diagram
TEA valve element assembly diagram

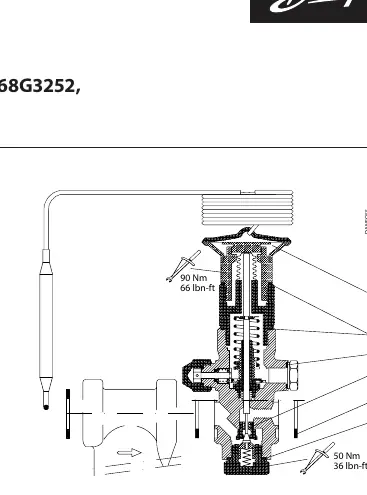

TEAT valve element assembly diagram
TEAT valve element assembly diagram
  • Top section: 90 Nm (66 lbn-ft)
  • Bottom section: 50 Nm (36 lbn-ft)

Refer to the assembly diagrams for the exact location of these torque points on the TEA and TEAT valve bodies.

Parts Breakdown

The repair kit includes various components labeled 1 through 6, along with a bulb strap. Materials used include Aluminum (Alu) and Fibre. Verify the specific parts required for your valve size (20 or 85) using the provided parts table, as quantities and materials may differ based on the size.

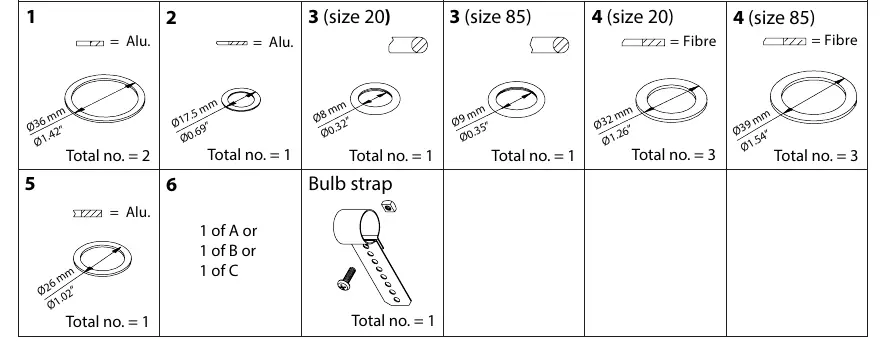

Parts list and material specifications
Parts list and material specifications

Manufacturer information

Danfoss A/S

Brand profile
Manufacturer website https://www.danfoss.com Support https://www.danfoss.com/en/service-and-support/ Manufacturer manuals https://www.danfoss.com/en/service-and-support/downloads/

Practical help

Common problems

Incorrect assembly torque

Ensure the top section is tightened to 90 Nm (66 lbn-ft) and the bottom section to 50 Nm (36 lbn-ft).

Identifying correct parts

Refer to the parts table to match the component number with the correct material (Alu or Fibre) and valve size (20 or 85).

Before use

  • Confirm the repair kit code matches your valve model.
  • Check the valve size (20 or 85) to ensure correct parts are used.
  • Prepare a torque wrench capable of reaching 90 Nm and 50 Nm.
  • Verify all components (1-6) are present before starting assembly.
