Delta 19893Z-SD-DST Kitchen Faucet Parts Diagram
Official parts diagram for the Delta 19893Z-SD-DST kitchen faucet. Use this guide to identify replacement parts, including the cartridge, wand, hose, and mounting hardware.
Table of contents
Quick guide from the manual

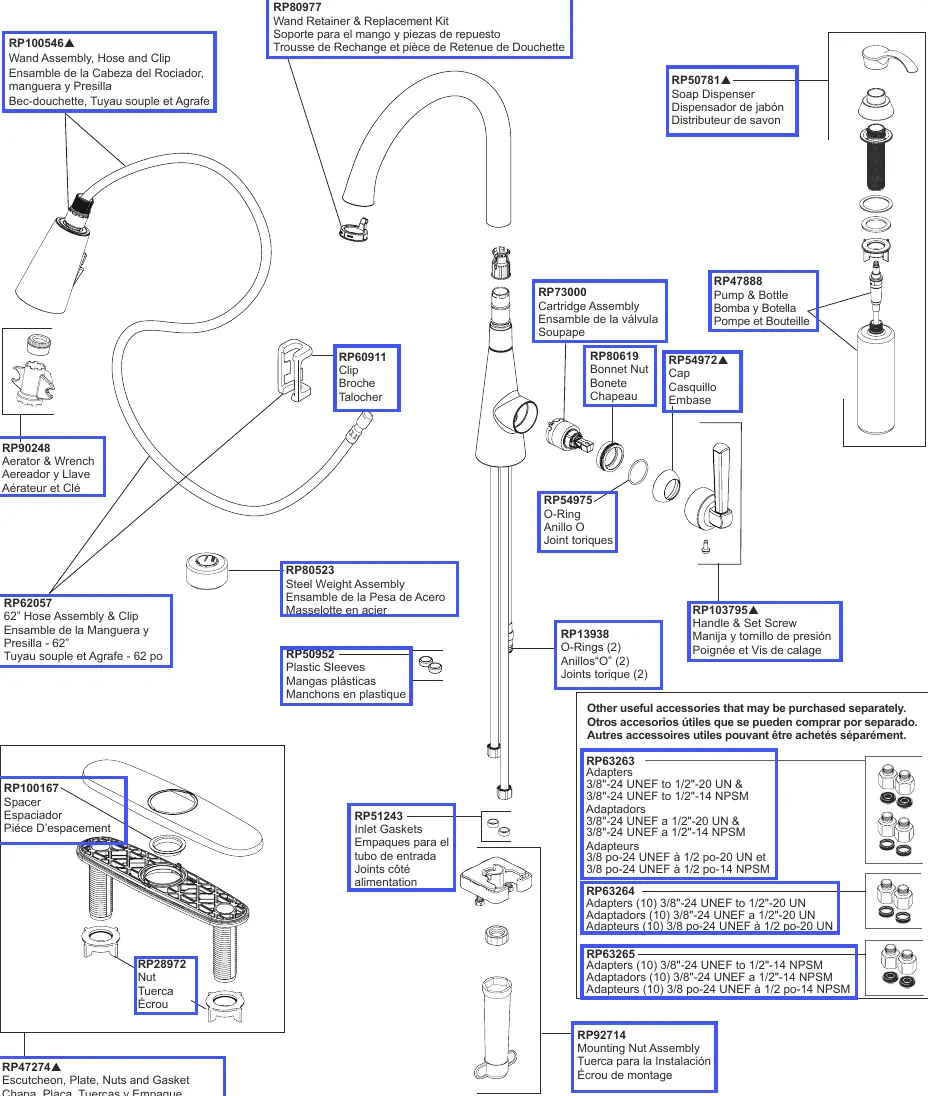

This document provides an exploded view of the Delta 19893Z-SD-DST kitchen faucet. It is intended for identifying replacement parts and understanding the assembly structure. Use the provided "RP" part numbers when ordering replacements from authorized dealers.
Parts Identification
The diagram illustrates the assembly of the faucet, including the wand, hose, cartridge, and mounting hardware. Each component is labeled with a specific "RP" part number. Note that some parts are finish-specific, indicated by a triangle symbol next to the part number.
Key Components
- Wand Assembly: RP100546
- Cartridge Assembly: RP73000
- Hose Assembly: RP62057
- Mounting Nut Assembly: RP92714
- Soap Dispenser: RP50781
- Aerator & Wrench: RP90248
Optional Accessories
The document lists various adapters available for purchase separately to accommodate different connection standards:
- RP63263: Adapters 3/8"-24 UNEF to 1/2"-20 UN & 3/8"-24 UNEF to 1/2"-14 NPSM
- RP63264: Adapters (10) 3/8"-24 UNEF to 1/2"-20 UN
- RP63265: Adapters (10) 3/8"-24 UNEF to 1/2"-14 NPSM
Practical help
Common problems
Inspect the Cartridge Assembly (RP73000) or replace O-Rings (RP54975, RP13938).
Check the Aerator (RP90248) for debris or mineral buildup.
Check the Handle & Set Screw (RP103795) for tightness.
Before use
- Identify the specific RP part number from the diagram.
- Verify the finish of your faucet, as some parts are finish-specific.
- Ensure the water supply is turned off before attempting any repairs.
- Check if you need specific adapters for your connection type.
