Draper 150mm Clip-On Desk Fan 08710 Instructions

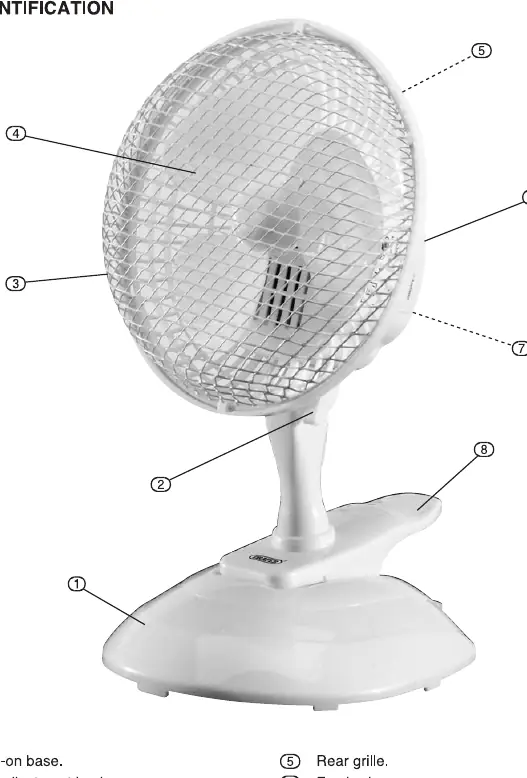

Product Overview

The Draper 150mm (6 inch) clip-on fan is designed for air circulation in home or office environments. It features a compact design with a spring clip for secure attachment to stable surfaces and an adjustable tilt mechanism for directing airflow.

Technical Specifications

• Stock No: 08710
• Part No: FAN1B
• Rated Voltage: 230V, 50Hz
• Rated Input: 15W
• Speeds: 2
• Dimensions: Approx. 170 x 320 x 205mm
• Weight: 750g

Safety Information

Warning: Read all instructions carefully to avoid serious personal injury. Keep the fan out of reach of children and ensure it is used in an area free from loose items like curtains or clothing that could be sucked into the air inlet. Never insert fingers or objects through the protective grille while the fan is running. Always disconnect from the power supply before moving, cleaning, or performing maintenance. Do not use the fan near open windows where rain may cause an electrical hazard.

Assembly and Operation

The fan requires final assembly of the spring clip to the fan body using the tilt adjustment knob. To operate, securely clamp the fan to a firm, stable surface. The speed is controlled via the knob on the rear of the fan (0: OFF, 1: LOW, 2: HIGH). Always ensure the fan is completely stopped before making adjustments or changing the tilt angle.

Maintenance and Cleaning

Before cleaning, ensure the fan is switched off and unplugged. Carefully remove the front protective grille to access the blades. Clean components using a dry or damp soft cloth. Do not use detergents or sprays, as these can damage the motor or switch assembly. Always re-secure the protective grille before resuming use.

Disposal

At the end of its service life, do not dispose of the fan with domestic waste. Follow local regulations for the disposal of Waste Electrical and Electronic Equipment (WEEE) to ensure environmentally responsible recycling.
