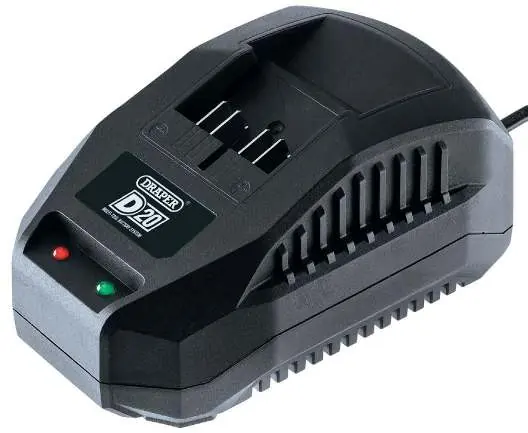

Draper D20 20V Li-ion Battery Charger 97914 Specification Sheet
Technical specifications and compatibility guide for the Draper D20 20V Li-ion Battery Charger (Stock No. 97914). Includes charging times for 2.0Ah to 5.0Ah batteries.
Quick answers from the manual
Quick answer
- The Draper 97914 is a 2.4A charger for the D20 20V Li-ion battery system, compatible with 2.0Ah, 3.0Ah, 4.0Ah, and 5.0Ah batteries. p. 1
Key actions
- Connect the D20 battery to the charger and monitor the charge level indicator. p. 1
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Amperage | 2.4A | Output current | p. 1 |
| Weight | 0.42kg | Unit weight | p. 1 |
Where to find it in the PDF
- Specification Sheet p. 1
Table of contents
Quick guide from the manual
The Draper D20 20V Li-ion Battery Charger (Stock No. 97914) is a dedicated charging unit for the D20 multi-tool battery system. It features a built-in charge level indicator to monitor the status of the battery during the charging process.
Specifications
The charger provides a 2.4A output. Charging times are dependent on the capacity of the battery being charged:
- 2.0Ah: 55 minutes
- 3.0Ah: 85 minutes
- 4.0Ah: 110 minutes
- 5.0Ah: 150 minutes
The unit has a total weight of 0.42kg.
Compatibility
This charger is designed specifically for the D20 interchangeable battery system. It is compatible with 2.0Ah, 3.0Ah, 4.0Ah, and 5.0Ah D20 batteries, allowing users to share the same battery packs across all tools within the D20 series.
Manufacturer information
Draper Tools
Practical help
Before use
- Verify the battery is part of the D20 series.
- Ensure the charger is connected to a suitable power source.
- Check the charge level indicator to confirm charging status.
Specs in practice
- Charge times
- The duration required to fully charge specific battery capacities (2.0Ah to 5.0Ah).
