Dremel GO 4V Max Cordless Screwdriver

Instruction manual for the Dremel GO 4V Max Cordless Screwdriver, covering safety, operation, charging, and maintenance.

Table of contents

Product Overview

The Dremel GO is a 4V Max cordless screwdriver designed for precision fastening tasks. It features a 1/4" hex shank bit holder, a 6-position torque selector for controlled driving, and a built-in lithium-ion battery. The tool is designed for convenience, with a compact, ergonomic design and an integrated micro USB charging port.

Dremel GO components diagram
Dremel GO components diagram

Safety Information

Warning: Read all safety warnings and instructions. Failure to follow them may result in electric shock, fire, or serious injury. Always wear eye protection. Keep the work area clean and well-lit. Do not operate the tool in explosive atmospheres. Ensure the switch is in the off-position before connecting to a power source or battery pack. Use personal protective equipment and avoid loose clothing or jewelry.

Charging and Battery Care

The Dremel GO is charged via a micro USB cable and power adapter. The battery charge indicator flashes green during charging and stays solid green when fully charged. The tool cannot be used while charging. Important: Only use the charger specified by the manufacturer. Charge the tool in temperatures between 32°F (0°C) and 113°F (45°C). Lithium-ion batteries should be recycled properly; do not dispose of them in household waste or fire.

Operation

To insert a bit, push it into the bit holder until it stops. Use the direction of rotation switch to select clockwise (driving) or counterclockwise (loosening) rotation. The middle position locks the shaft for manual screw driving. To start the tool, apply pressure to the bit holder; stop pressure to turn it off. Adjust the torque selector to match the screw size and material hardness.

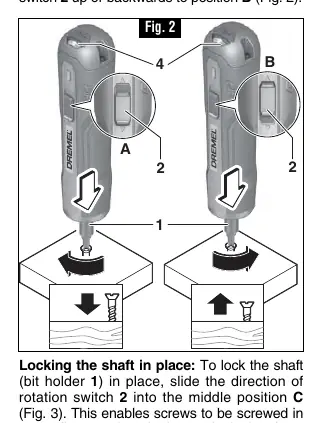

Direction of rotation switch settings
Direction of rotation switch settings

Maintenance

The tool contains no user-serviceable parts. Preventive maintenance should be performed by a Dremel Service Center. Keep ventilation openings clean and free of foreign matter. Use compressed dry air for cleaning, but always wear safety goggles. Avoid using cleaning agents that contain ammonia or chlorinated solvents, as they may damage plastic parts.
