DS18 100CT500-8 10" Octagonal Midrange Loudspeaker
Comprehensive owner's manual for the DS18 100CT500-8 10-inch octagonal midrange loudspeaker, including technical specifications, Thiele & Small parameters, and mounting dimensions.
Table of contents
Product Overview
The DS18 100CT500-8 is a high-performance 10-inch octagonal midrange loudspeaker designed for demanding audio applications. Engineered for clarity and power, this speaker features a robust construction with a ferrite magnet and an aluminum basket, ensuring durability and consistent performance. It is built to handle significant power levels while maintaining high sensitivity, making it an ideal choice for custom audio setups requiring precise midrange reproduction.
Technical Specifications
This loudspeaker is engineered with high-quality materials to deliver exceptional sound. Key specifications include a nominal impedance of 8 Ohms, an RMS power handling of 500 Watts, and a maximum power handling of 1000 Watts. The speaker offers a wide frequency response ranging from 40Hz to 8KHz, with a sensitivity of 100 dB. It is recommended to use a high-pass crossover set at 80 Hz to protect the driver and optimize performance.
Installation and Mounting

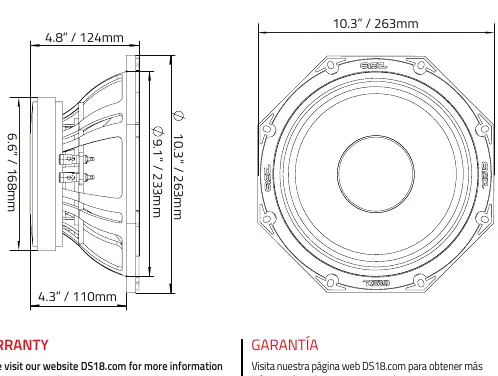

Proper installation is critical for achieving the best sound quality. The 100CT500-8 requires a front mount baffle cutout of 9.1 inches (233 mm) and has a mounting depth of 4.3 inches (110 mm). The overall diameter of the unit is 10.3 inches (263 mm), with an overall depth of 4.8 inches (124 mm). Ensure the mounting surface is rigid and sealed to prevent air leaks, which can negatively impact the speaker's output and frequency response.
Thiele & Small Parameters
For advanced users and system designers, the following Thiele & Small parameters are provided to assist in enclosure design and system integration: the equivalent volume (Vas) is 50.96 L, the free air resonance (Fs) is 90 Hz, and the total factor (Qts) is 0.527. These parameters, along with the mechanical and electrical factors provided, allow for precise modeling of the speaker's behavior in various enclosure types.
Safety and Maintenance
To ensure longevity, avoid exceeding the recommended power handling limits. The speaker should be kept away from moisture and extreme temperatures. Regularly inspect the mounting hardware to ensure the speaker remains securely fastened. Please note that this product contains materials that may be subject to California Proposition 65 warnings regarding cancer and reproductive harm. For warranty information and the latest updates, please visit the official manufacturer website.
Manufacturer information
DS18
Practical help
Common problems
Distorted sound at high volumes
Ensure the high-pass crossover is set to at least 80 Hz to prevent the speaker from attempting to reproduce frequencies below its capability.
Speaker not fitting in cutout
Verify that the mounting surface cutout diameter is exactly 9.1 inches (233 mm) as specified.
Before use
- Verify the amplifier impedance matches the 8 Ohm nominal impedance of the speaker.
- Ensure the mounting surface is flat and rigid.
- Check that the high-pass crossover is configured correctly.
- Confirm all wiring connections are secure and insulated.
Specs in practice
- Fs (Free Air Resonance)
- The frequency at which the speaker cone naturally vibrates most easily.
- Qts (Total Factor)
- A measure of the combined electrical and mechanical damping of the speaker.
Images and diagrams
- The SPL vs Freq graph shows the speaker's frequency response curve, indicating its output efficiency across the audible spectrum.
- The measurement diagrams illustrate the critical dimensions required for baffle cutout and mounting depth.
Model compatibility
- Designed for use in systems with an 8 Ohm load requirement.
- Requires a high-pass crossover set to 80 Hz for optimal protection and performance.
