This document provides essential information for the Eastbrook 15mm Thermostatic Radiator Valve (TRV). Please note that this product must be fitted by a fully qualified installer to ensure safety and proper operation.

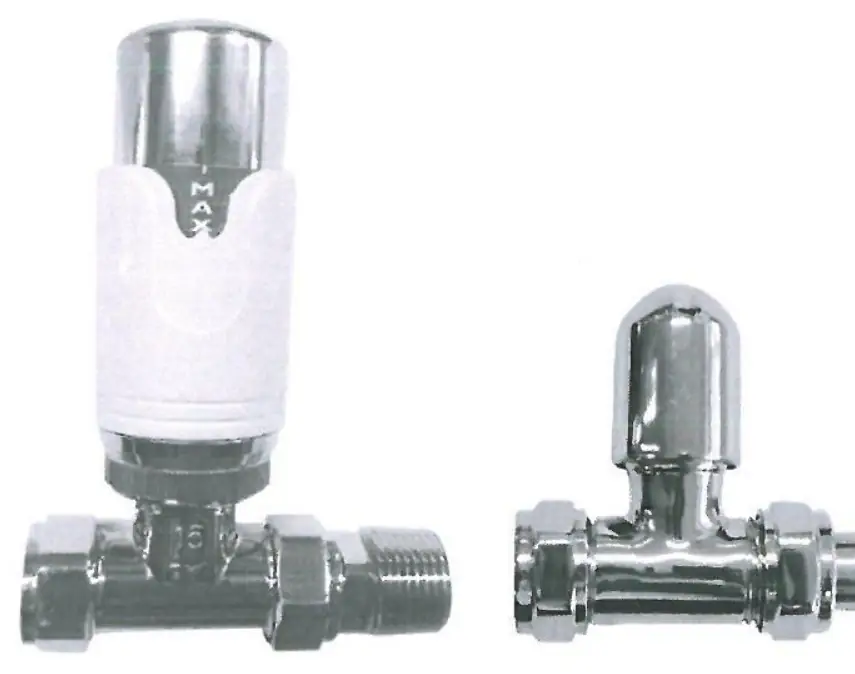

Product Overview
The thermostatic valve is designed to regulate fluid flow to radiators in central heating systems. It features a built-in sensor with a liquid-filled element that automatically controls the valve opening to maintain the ambient room temperature at the selected setting. This helps prevent unwanted temperature rises and achieves energy savings.
Technical Specifications
- Max pressure difference: 0.8 Bar
- Tested pressure: 10 Bar
- Nominal flow rate: 173kgs/h
- Max flow temperature: 120°C
- Mounting: Can be mounted horizontally or vertically
- Sensor: Built-in with liquid-filled element
Temperature Settings
The valve features a graduated scale from 0 to 5, corresponding to temperature ranges from 7°C to 28°C. It also includes a frost protection setting.
- * (Frost protection): 6°C
- 1: 11-13°C
- 2: 15-17°C
- 3: 19-21°C
- 4: 23-25°C
- 5: 27-29°C
Contact Information
Eastbrook, Eastbrook Road, Gloucester GL4 3DB. Technical Helpline: 01452 317890. Email: [email protected]
Practical help
Before use
- Ensure the installation is performed by a fully qualified installer.
- Verify the valve is compatible with a 15mm pipe system.
- Check that the system pressure does not exceed the 0.8 Bar maximum pressure difference.
- Confirm the desired orientation (horizontal or vertical) is suitable for the installation site.
Specs in practice
- Max pressure difference 0.8 Bar
- The maximum pressure drop across the valve for proper operation.
- Nominal flow rate 173kgs/h
- The standard rate of water flow through the valve.
- Max flow temperature 120°C
- The highest temperature the valve can safely handle.
