Installation Guide for Ebern Designs 1-Light Single Cube Pendant

Quick Installation Guide

This document provides instructions for installing the Ebern Designs 1-Light Single Cube Pendant. Please ensure all safety protocols are followed before beginning the installation process.

Safety Precautions

• Power Off: Always ensure the electricity is turned off at the main circuit breaker before starting any installation work.
• Professional Installation: This product should be installed by a qualified professional electrician.

Assembly and Installation

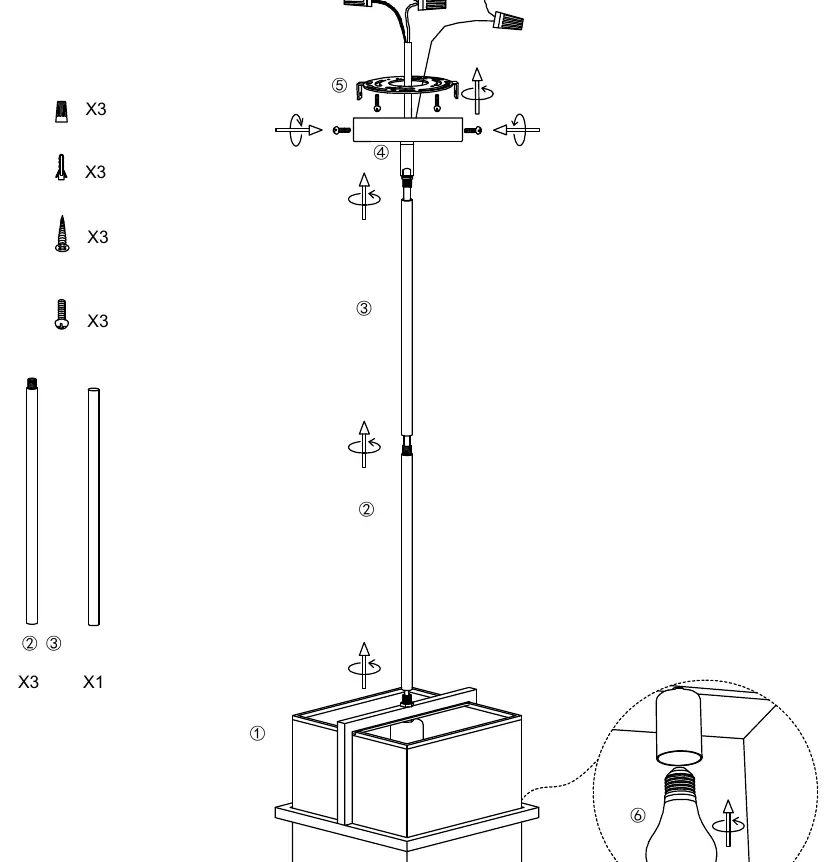

1. Prepare Tubes: Thread the fixture wire through hanging tube 2 and tube 3. Rotate the tubes to secure them to the fixture. You can connect additional tubes if necessary to achieve the desired hanging height.
2. Attach Canopy: Thread the wire through the canopy (part 4) and rotate to install the canopy onto the fixture assembly.
3. Mount Bracket: Install the mounting bracket to the ceiling junction box using the provided screws.
4. Connect Wiring: Connect the fixture wires to the home electrical line using the provided cap connectors.
5. Secure Fixture: Attach the fixture assembly to the mounted bracket using the screws.
6. Install Bulb: Insert the light bulb into the socket. Note that the bulb is not included in the package.
