Ebern Designs 120CM 3-Tier Bookcase Assembly Guide
Assembly guide for the Ebern Designs 120CM 3-Tier Bookcase. Includes a parts list, board identification, and step-by-step installation instructions with critical tips for proper alignment.
Table of contents
Quick Guide
This document provides assembly instructions for the Ebern Designs 120CM 3-Tier Bookcase. The most important rule is to tighten screws to 70% during the initial assembly phase to ensure proper alignment, and only fully tighten them once the installation is complete.
Parts List
- A: 4CM Pointed Screws (12 pieces)
- B: Small Nails (30 pieces)
- C: Sandpaper (1 piece)
- D: Protective Corner Covers (4 pieces)
Board Identification
The bookcase consists of the following components:
- Shelf Board (2 pieces)
- Vertical Board (3 pieces)
- Side Board (2 pieces)
- Cover Board (2 pieces)
- Back Board (3 pieces)
Assembly Instructions

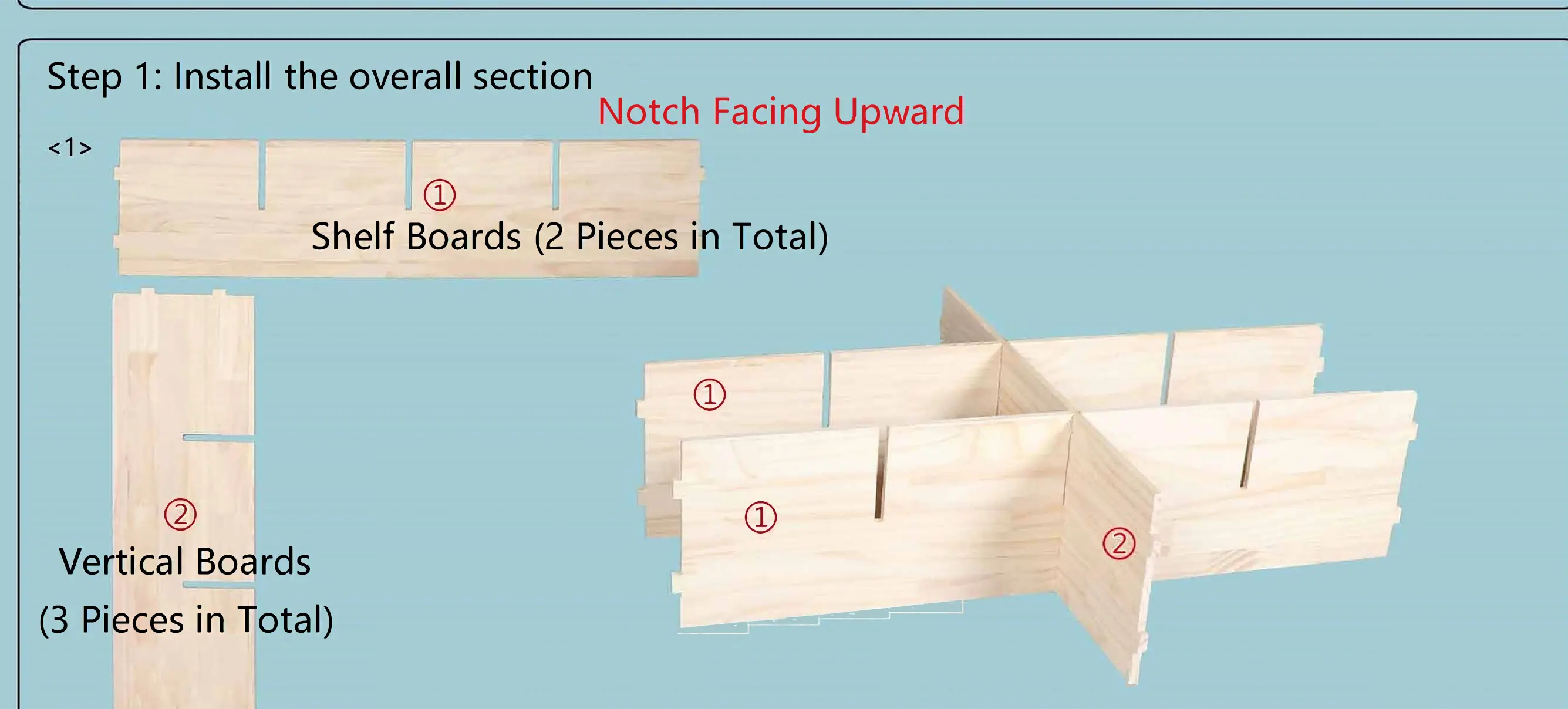

Step 1: Install the overall section
Begin by assembling the shelf boards and vertical boards. Ensure that the Notch is Facing Upward during this process to ensure correct fitment.
Practical help
Common problems
Ensure screws are only tightened to 70% during the initial assembly. Fully tighten all screws only after the structure is complete.
Before use
- Verify all parts (A, B, C, D) are present
- Identify all board types (Shelf, Vertical, Side, Cover, Back)
- Clear a flat, stable workspace
- Ensure you have a screwdriver (not included)
