ECO-WORTHY 150W 17.25V Mono Solar Panel

Product Overview

The ECO-WORTHY 150W 17.25V monocrystalline solar panel is an efficient solution for 12V solar power systems and battery charging. Its modular design allows for easy expansion in parallel or series configurations, enabling users to create 24V, 48V, or larger systems as needed. The panel is suitable for a wide range of applications, including caravans, camper vans, boats, residential setups, gardens, sheds, and farms.

Key Features

• High Durability: Features a robust aluminum frame and tempered glass with a high bearing capacity.
• Weather Resistance: IP65 waterproof rating ensures reliable performance in various outdoor conditions.
• Longevity: Designed for a lifespan exceeding 20 years.
• Reverse Current Protection: Includes a built-in diode to prevent reverse current flow.

Technical Specifications

The following data is tested under standard test conditions (STC: 1000W/m2, 25C, Air Mass 1.5):

• Rated Power: 150W
• Solar Cell Type: Monocrystalline
• Maximum/Peak Voltage (Vmp): 17.25V
• Open Circuit Voltage (Voc): 20.00V
• Short Circuit Current: 8.70A
• Maximum Current: 9.22A

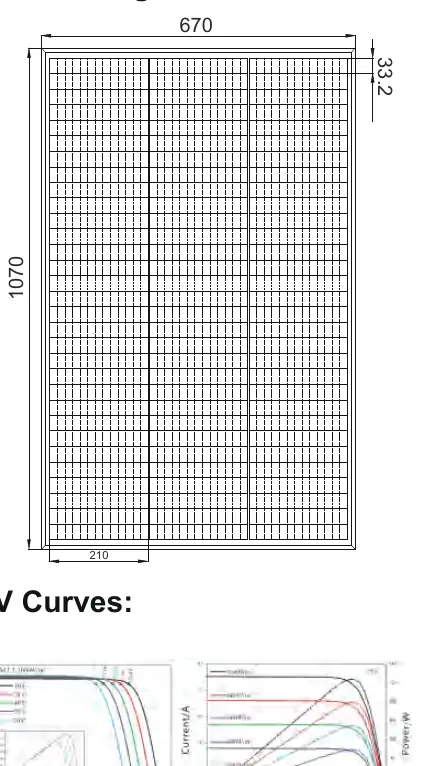

• Dimensions: 1070mm x 670mm x 35mm
• Weight: 17.58 lbs (8.00 kg)
• Cable Length: 90cm (35 inch)

Installation and Maintenance

The panel can be easily mounted using suitable brackets. Ensure the installation site is free from obstructions that could cause shading. Regular maintenance involves keeping the surface clean from debris, dust, or contamination to maintain optimal efficiency. Avoid using the panel under abnormal conditions or with incompatible peripheral devices.

Safety and Support

The manufacturer does not accept liability for damages resulting from force majeure (fire, flood, earthquake, etc.), intentional misuse, neglect, improper maintenance, or unauthorized modifications. If you encounter technical issues, please contact ECO-WORTHY support via the provided contact numbers or email address for professional assistance.
