EcoFlow 160W Portable Solar Panel

Product Overview

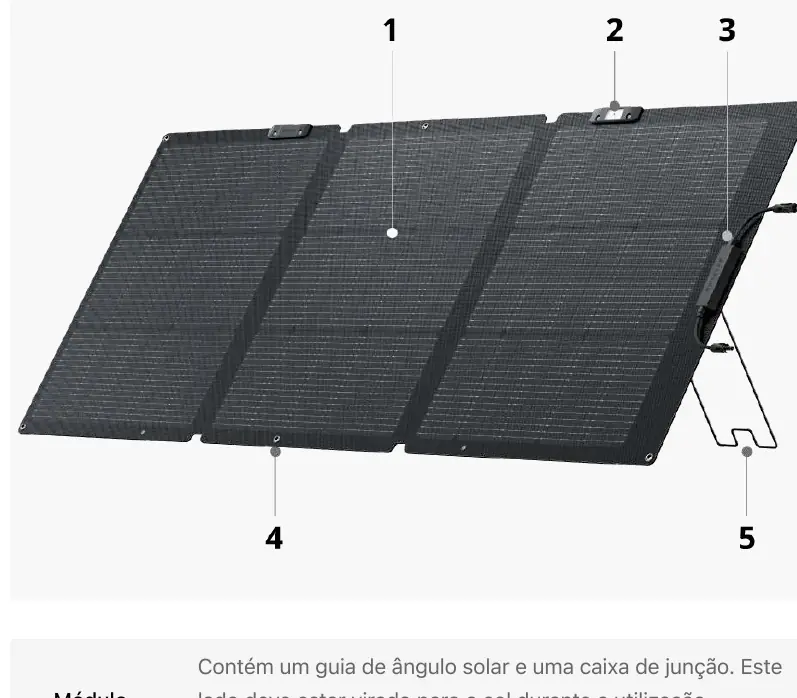

The EcoFlow 160W Portable Solar Panel is a high-efficiency monocrystalline solar solution designed for portability and ease of use. It features an integrated solar angle guide to help users achieve the optimal 90-degree angle for maximum power output. The panel is built with a durable, foldable design and includes a kickstand for stable positioning.

Getting Started

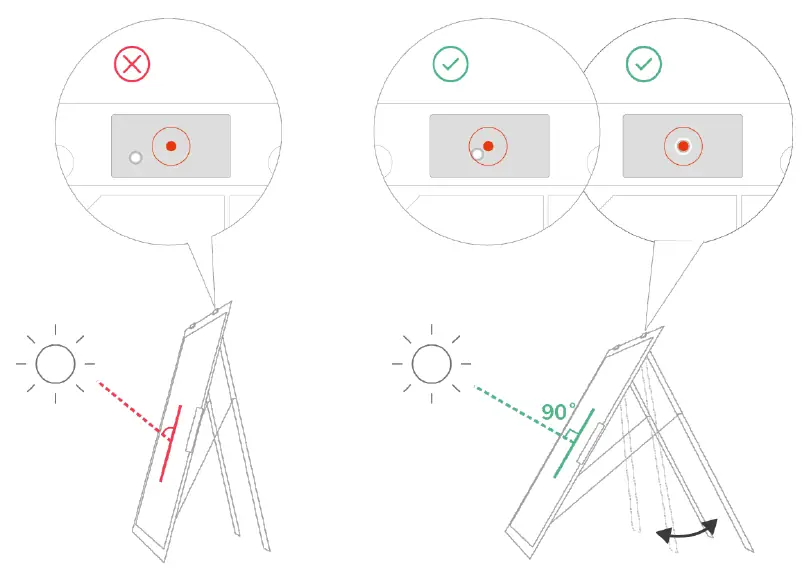

To begin, place the solar panel on a flat surface and unfold the kickstand before unfolding the panel itself. Position the junction box towards the sun. Use the solar angle guide to adjust the panel's tilt; when the shadow of the dot hits the center of the guide, the panel is at a 90-degree angle to the sun, ensuring maximum efficiency. Avoid letting the shadow leave the red circle on the guide.

Powering Your Devices

The panel can be connected to EcoFlow portable power stations or other compatible devices. Ensure the panel's maximum output parameters are within the input range of your device to prevent damage. Connect the solar output cable to the provided XT60i charging cable, then plug it into the device's solar input port. For multiple panels, they can be connected in series or parallel depending on your power requirements and the device's input specifications.

Maximizing Output

For optimal performance, use the panel in direct sunlight. Keep the surface clean and free of dust, leaves, or bird droppings, as shading significantly reduces power output. Regularly adjust the panel's angle throughout the day to track the sun's movement.

Maintenance and Safety

Clean the panel surface with a soft, damp cloth after it has cooled to ambient temperature. Do not use harsh chemicals or abrasive materials. The panel has an IP68 water-resistance rating, but it should not be submerged in water. If it gets wet, dry the connectors immediately. For long-term storage, fold the panel and store it in its protective case. Always follow local regulations for disposal at the end of the product's life.

Technical Specifications

• Rated Power: 160W (+/- 5W)
• Open Circuit Voltage: 21.3V
• Short Circuit Current: 9.1A
• Cell Type: Monocrystalline Silicon TOPCon
• Weight: Approx. 5.6 kg
• Dimensions (Unfolded): 600 x 1610 x 25 mm
