Elite Gourmet 10.5L Digital Dual Zone Air Fryer Oven

User manual for the Elite Gourmet 10.5L Digital Dual Zone Air Fryer Oven (Model EAF1055D), covering setup, operation, cooking charts, and maintenance.

Table of contents

Manual images

Jump to the section

Product Overview

The Elite Gourmet 10.5L Digital Dual Zone Air Fryer Oven is a versatile kitchen appliance designed to provide healthier cooking options by using circulating hot air instead of deep frying. This model features two independent cooking zones, allowing you to prepare different foods simultaneously with customized time and temperature settings. The digital control panel offers intuitive operation, including preset functions for various food types such as fries, chicken, steak, and vegetables, as well as a dehydration mode.

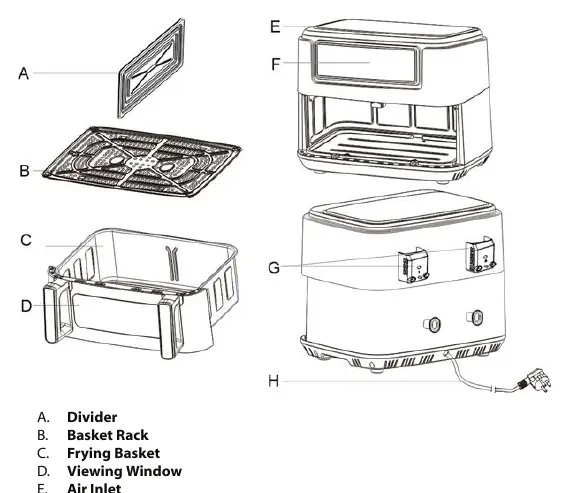

Parts Identification
Parts Identification

Safety Precautions

Consumer safety is paramount. Always read all instructions before use. Never immerse the main housing in water or other liquids to avoid electric shock. The appliance should not be used by children or individuals with certain disabilities without supervision. Ensure the unit is placed on a dry, flat, heat-resistant surface with at least 4 inches of clearance from walls and other objects. Never operate the unit under wall cabinets or in an appliance garage. Always unplug the unit when not in use and allow it to cool completely before cleaning or handling parts.

Operating Instructions

To begin, ensure the unit is plugged into a grounded outlet. Use the Left or Right Zone buttons to activate the desired cooking area. You can select a preset function or manually adjust the temperature and time using the dedicated controls. The SYNC FINISH feature allows two different foods to finish cooking at the same time by delaying the start of the shorter cycle. The SYNC COOK feature applies the same settings to both zones. During operation, you can remove the basket to stir or flip food; the unit will automatically pause and resume once the basket is reinserted.

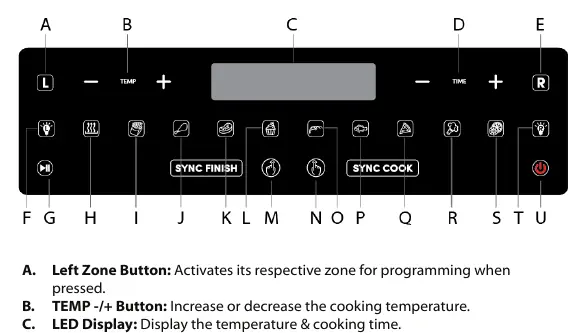

Control Panel Layout
Control Panel Layout

Cleaning and Maintenance

Thorough cleaning after every use is essential for longevity. Unplug the unit and allow it to cool. The frying basket and rack are top-rack dishwasher safe, but they can also be washed with warm, soapy water and a non-abrasive sponge. Never use metal scouring pads or abrasive cleansers, as these can damage the nonstick finish. Wipe the interior and exterior of the main housing with a damp cloth. Do not use window cleaner on the viewing windows.

Tips for Best Results

For optimal performance, do not overfill the baskets, as this inhibits air circulation. Smaller food items benefit from a shake mid-way through the cooking cycle. If using oil, toss food in a separate bowl before placing it in the basket; never spray the basket directly with aerosol oil, as it can damage the coating. Always check food for doneness, as cooking times may vary based on food size and density.

Manufacturer information

Elite Gourmet

Brand profile

Practical help

Common problems

Air fryer does not work

Ensure the power cord is plugged into an electrical outlet or contact customer service.

Food is not completely cooked

Use smaller batches, increase the temperature, or increase the cooking time.

White smoke is emitting

This is normal when cooking high-fat foods or if there is oil residue on accessories; clean accessories thoroughly after each use.

Basket will not slide in securely

Ensure the rack is properly placed inside and the basket is not overfilled.

Before use

  • Remove all packaging materials.
  • Wash accessories with warm, soapy water and dry thoroughly.
  • Wipe the interior and exterior of the housing with a damp cloth.
  • Place on a dry, flat, heat-resistant surface.
  • Ensure 4 inches of clearance from nearby objects.
  • Remove any objects stored on top of the unit.

Specs in practice

10.5L Capacity
Total cooking volume across the dual zones.
Dehydrate Mode
Low-temperature setting (130°F) for drying fruits, vegetables, and meats.

Images and diagrams

  • A: Divider for separating food types.
  • B: Basket Rack for air circulation.
  • C: Frying Basket for holding food.
  • D: Viewing Window to monitor cooking progress.
  • F: Digital Control Panel for settings.

Model compatibility

  • Use only manufacturer-recommended oven-proof accessories.
  • Do not use paper, cardboard, or plastic in the oven.
  • Not suitable for use with loose batters that slide off food.
