This document provides installation instructions for the ELKO Flexi + 1.5M extension ring (6mm). This product is designed to extend the depth of the wall box. Installation must be performed by skilled professionals only due to electrical safety risks.

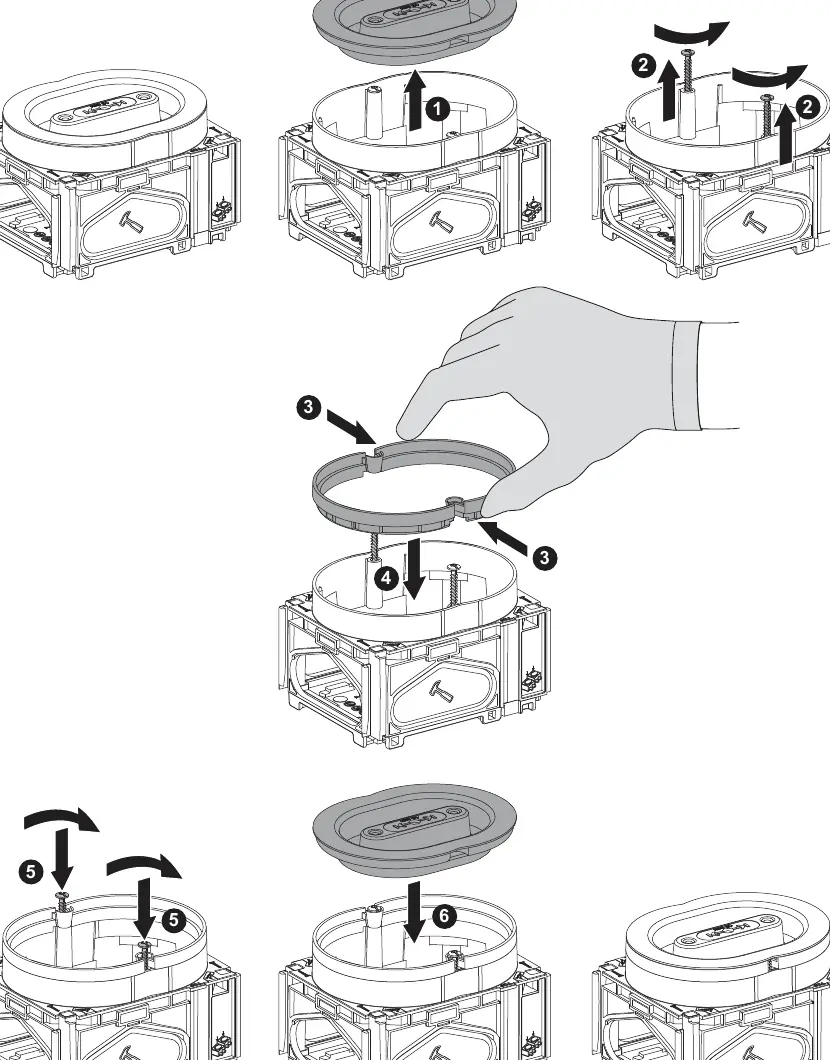

Installation instructions
- Remove the existing cover from the wall box.
- Unscrew the existing screws holding the mechanism in place.
- Position the 6mm extension ring onto the wall box.
- Secure the mechanism and the extension ring using the appropriate screws (18mm or 32mm).
- Reattach the cover to the extension ring.
Safety information
Warning: Hazard of electric shock. Safe electrical installation must be carried out only by skilled professionals who have knowledge in connecting to installation networks, connecting electrical devices, laying electric cables, and adhering to local wiring rules and regulations. Failure to follow these instructions may result in death or serious injury.
Manufacturer information
ELKO AS
Practical help
Common problems
Use 18mm screws for standard installation or 32mm screws (EKO07447) if required by the depth.
Before use
- Ensure power is disconnected
- Verify the wall box type
- Select correct screw length (18mm or 32mm)
- Ensure you are a qualified professional
