The Elmag HDI 16K400 TC is a mobile induction heater designed for industrial applications. Key operational requirements include a 400V/3-phase power supply and a 20-liter coolant capacity. Important: The device must never be transported horizontally.
Product Overview
The unit features a 5-inch touch screen for controlling heating power and monitoring parameters. It includes a test menu for phase voltage and IGBT testing. The system is microprocessor-controlled and supports temperature-level adjustment via an optional external laser sensor.

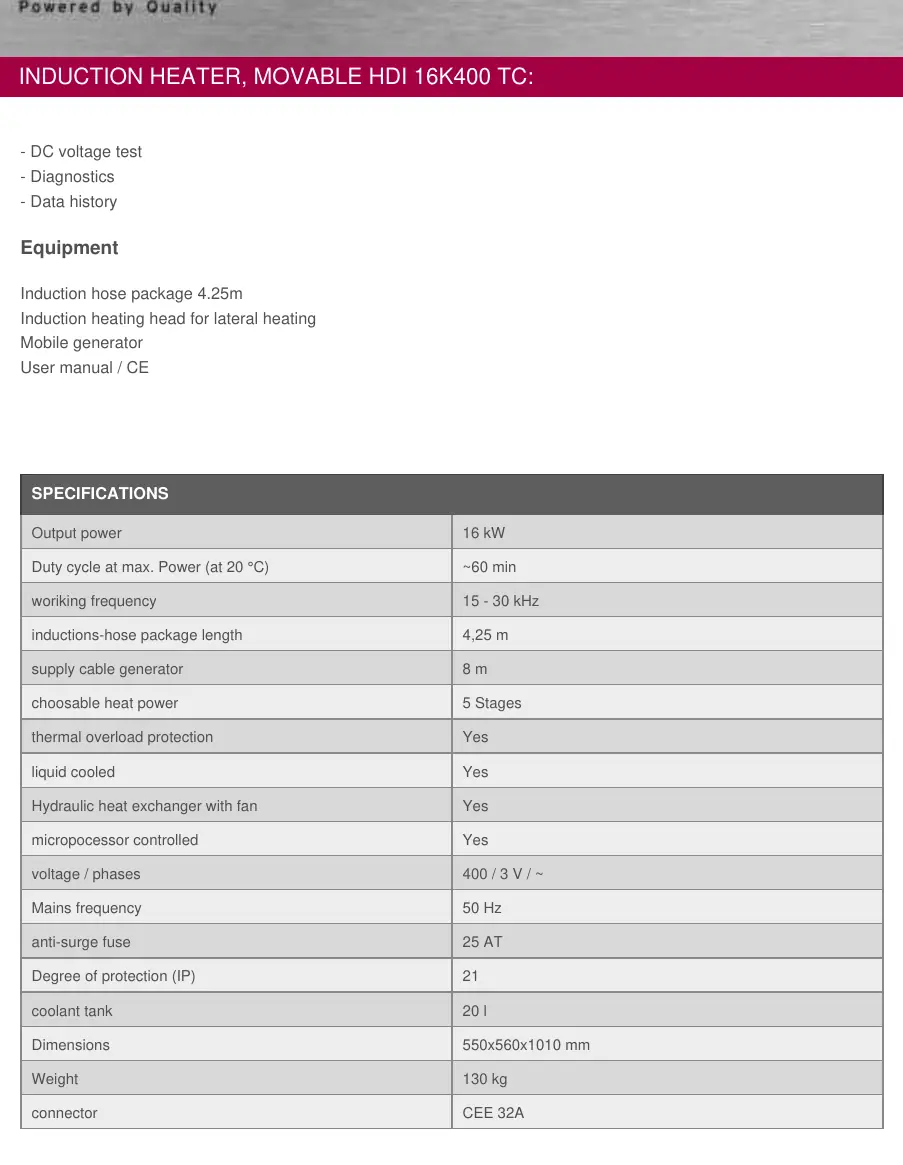

Technical Specifications
- Output power: 16 kW
- Working frequency: 15 - 30 kHz
- Voltage/Phases: 400V / 3~
- Coolant tank: 20 liters
- Weight: 130 kg
- Connector: CEE 32A
- Degree of protection: IP21
Equipment
The standard equipment includes:
- Induction hose package (4.25m)
- Induction heating head for lateral heating
- Mobile generator
Manufacturer information
ELMAG Entwicklungs und Handels GmbH
Practical help
Common problems
The device must not be transported horizontally.
Before use
- Ensure 400V/3-phase power supply is available
- Verify CEE 32A connector compatibility
- Check coolant tank level (20L capacity)
- Ensure the device is kept upright during transport
