Installation Guide for Emtek 2107US15 Modern Rectangular Pocket Door Lock
Step-by-step installation guide for the Emtek 2107US15 Modern Rectangular Pocket Door Lock, including door and jamb preparation dimensions and mounting instructions.
Quick answers from the manual
Quick answer
- To install the Emtek Modern Rectangular Pocket Door Lock, prepare the door and jamb according to the specified dimensions, loosen the screws on both sides of the lock, insert the lock into the door, and secure it using the provided wood screws. p. 1
Key actions
- Prepare door and jamb p. 1
- Loosen screws before installation p. 1
- Secure lock p. 1
Maintenance and reset
- Re-tighten all screws after installation p. 1
Show 2 more answers Show less
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Door Prep Height | 3 1/8" | Vertical cutout dimension | p. 1 |
| Door Prep Depth | 2 1/8" | Horizontal cutout dimension | p. 1 |
Where to find it in the PDF
- Installation Instructions p. 1
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides the necessary steps to install the Emtek Modern Rectangular Pocket Door Lock. It covers the required dimensions for door and jamb preparation, as well as the installation and securing process.
Door and Jamb Preparation
Before installing the lock, ensure the door and jamb are prepared according to the following specifications:
- Door Prep: Requires a cutout of 3 1/8" height, 2 1/8" depth, and 1 15/16" width. Drill 1/8" x 1/4" deep holes on both sides.
- Jamb Prep: Requires a cutout of 1 1/16" width, 1/4" deep, and 3/64" deep.

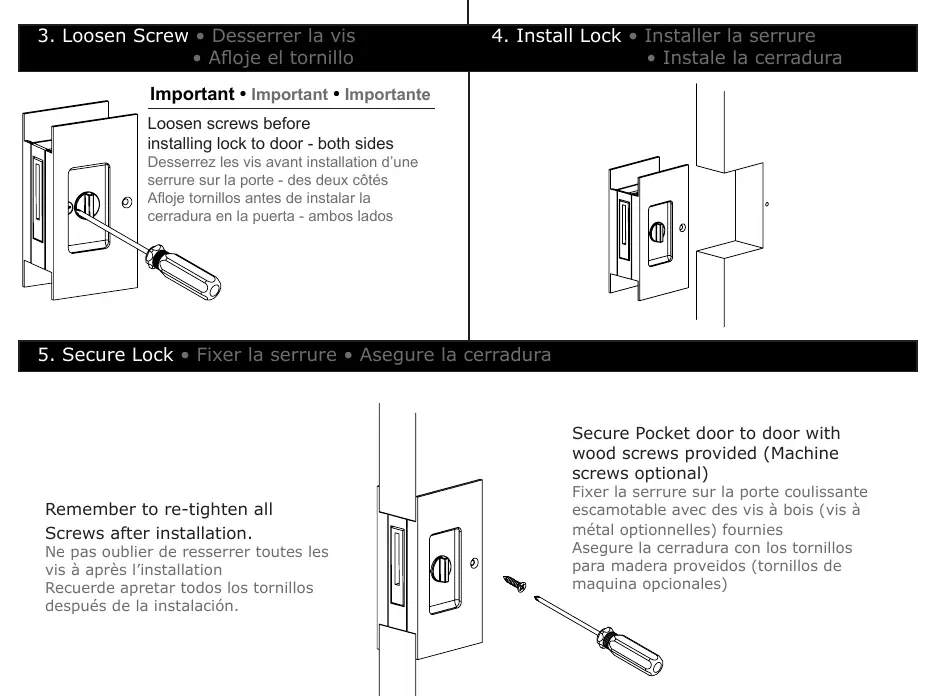

Installation Steps
- Loosen Screws: Before installing the lock into the door, loosen the screws on both sides of the lock.
- Install Lock: Insert the lock into the prepared door cutout.
- Secure Lock: Secure the pocket door lock to the door using the provided wood screws. Machine screws are optional.
Important Notes
- Remember to re-tighten all screws after the installation is complete.
- Ensure the door and jamb preparation dimensions are accurate before proceeding with the installation.
Practical help
Common problems
Lock does not fit into the door or jamb
Verify that the door and jamb cutouts match the dimensions specified in the manual (Door: 3 1/8" x 2 1/8" x 1 15/16"; Jamb: 1 1/16" width).
Before use
- Verify door and jamb preparation dimensions
- Ensure you have the provided wood screws (machine screws are optional)
- Have a screwdriver ready for installation
- Loosen screws on both sides of the lock before insertion
