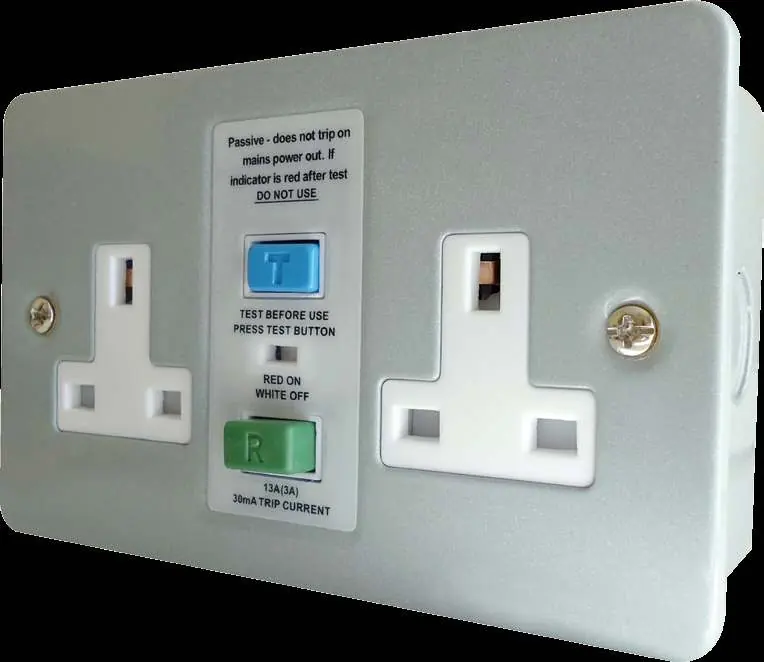

This document provides essential information for the Eterna 13A Metalclad Twin Unswitched RCD Socket. The device is designed for safety, featuring passive operation which means it remains latched even after a power loss, eliminating the need for manual resets. Always perform a test before use to ensure the RCD mechanism is functioning correctly.
Safety and Testing

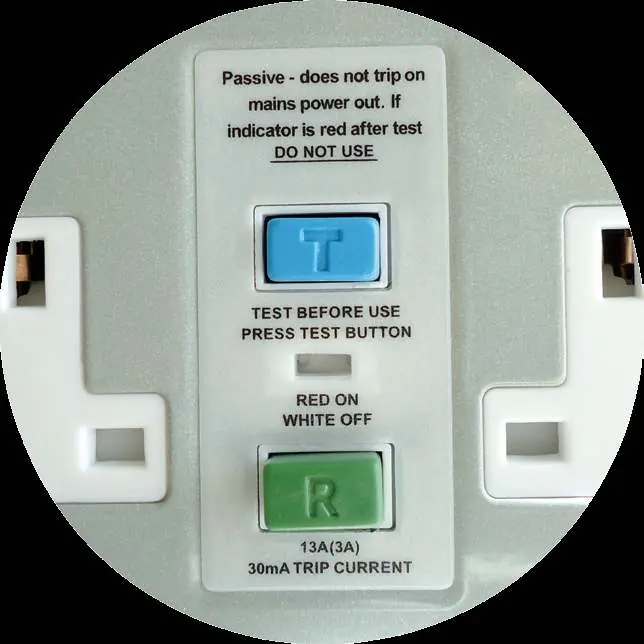

The RCD socket must be tested before use to ensure user safety. Follow these steps:
- Press the blue T (Test) button.
- Check the indicator window. If the indicator is RED, the device is ON. If it is WHITE, the device is OFF.
- Warning: If the indicator remains RED after pressing the test button, the device is faulty and must NOT be used.
Technical Specifications
- Rated Current: 13 Amp
- Trip Current: 30mA
- Trip Speed: Less than 40mS (typical)
- Construction: Pressed steel
- IP Rating: IP20
- Dimensions: 144mm x 89mm x 43mm
Manufacturer information
Eterna Lighting
Practical help
Common problems
The RCD mechanism is faulty. Do not use the socket and replace the unit.
Before use
- Ensure the socket is securely mounted.
- Press the blue 'T' test button to verify the RCD function.
- Confirm the indicator turns white (OFF) after testing.
- Do not use if the indicator remains red.
