User Manual for Euromaid WMD107 Washer Dryer Combo

Quick guide for the Euromaid WMD107 10kg/7kg Washer Dryer Combo. Includes key features, wash programs, technical specifications, and installation dimensions.

Table of contents

Manual images

Click an image to enlarge
Euromaid WMD107 Washer Dryer Combo Page 1 Product dimensions diagram Page 2

Quick guide from the manual

The Euromaid WMD107 is a 10kg/7kg front load washer dryer combo. This document outlines the key features, available wash programs, technical specifications, and installation dimensions required for setup.

Features

Euromaid WMD107 Washer Dryer Combo
Euromaid WMD107 Washer Dryer Combo
  • High-performance QuietDrive inverter motor for energy efficiency and noise reduction.
  • 16 wash programs including specialized cycles for cotton, wool, jeans, and synthetic fabrics.
  • Quick 15-minute wash function and Rapid 45 program.
  • 24-hour time delay feature in one-hour increments.
  • 3-compartment detergent drawer (prewash, main wash, softener).
  • Large 330mm door opening.
  • Child lock and Pause mode.

Wash Programs

The machine offers 16 distinct programs: Cotton, Cotton Eco, Easy Care, Delicate, Mix, Wool, Colours, Jeans, Rinse + Spin, Spin Only, Dry Only, Quick 15, Rapid 45, Synthetic, 1hr W/D, and My Wash.

Technical Specifications

  • Power Supply: 220-240V / 50-60Hz
  • Total Power: 1950W
  • Total Current: 10 amp
  • Spin Speed: 1400rpm
  • Efficiency Rating: 3.5 Star Energy (washer), 3.0 Star Energy (dryer), 4.0 Star WELS Water rating.

Installation Dimensions

Ensure the installation area can accommodate the following dimensions:

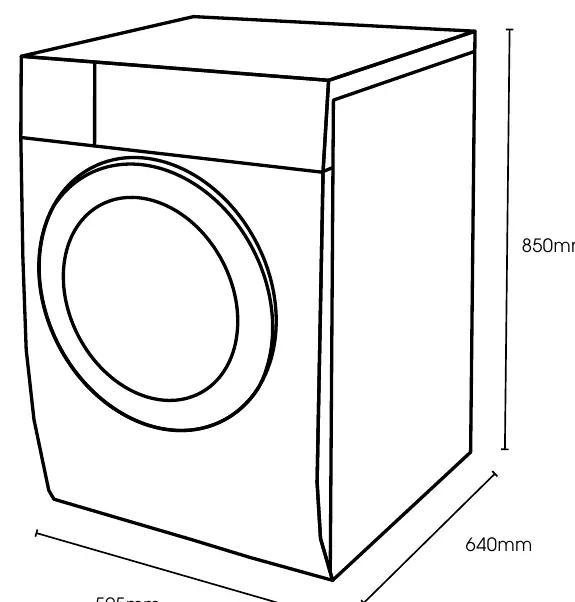

Product dimensions diagram
Product dimensions diagram
  • Height: 850mm
  • Width: 595mm
  • Depth: 640mm

Practical help

Before use

  • Ensure power supply is 220-240V/50-60Hz
  • Verify installation space (850mm H x 595mm W x 640mm D)
  • Check detergent drawer compartments (prewash, main wash, softener)

Images and diagrams

  • The product diagram shows the front panel layout including the detergent drawer, program dial, display, and door.
  • The installation diagram provides the height, width, and depth dimensions.
