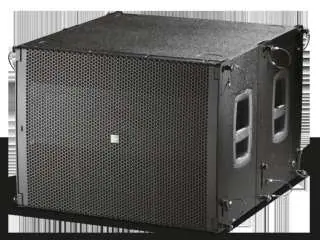

FBT MUSE 118FSN Series Flyable Subwoofer Operating Manual
Comprehensive operating manual for the FBT MUSE 118FSN series flyable subwoofers, covering installation, cardioid configurations, networking, and DSP control.
Table of contents
Quick guide from the manual
The FBT MUSE 118FSN series is a range of high-performance, flyable subwoofers designed for professional audio applications. This manual provides essential instructions for safe installation, networking, and configuration, including advanced cardioid setups.
Device Description
The MUSE 118FSN series features a 18-inch neodymium woofer with a 3-inch voice coil and a 1600W RMS Class D amplifier. The cabinet is constructed from 15mm birch plywood and includes integrated suspension hardware compatible with MUSE 210 line arrays. The system supports TCP/IP networking via the INFINITO management suite and Dante digital audio streaming.
Installation
The system can be flown or ground-stacked. Always inspect suspension materials before use and ensure all locking pins are correctly engaged. The system is designed for a 4:1 safety factor. For cardioid configurations, specific physical orientation and DSP presets are required to cancel rear-facing sound pressure.
Networking
The subwoofers feature dual Ethernet ports for daisy-chaining or star network topologies. The INFINITO management suite allows for remote monitoring and control. A hardware bypass feature ensures network continuity in case of individual device failure.
Controls and Functions
The rear panel includes an OLED display and a push-encoder for local DSP control. Key functions include:
- CONFIG PRESET: Select between OMNI and CARDIOID modes.
- IN ROUTING: Choose between Analog (XLR) or Dante sources.
- MEMORY: Save and recall snapshots, including factory defaults.
- LOCK SCREEN: Prevent unauthorized changes to settings.
Safety and Maintenance
The device must be connected to a grounded power outlet. Do not expose the unit to rain or moisture. In case of malfunction, the display provides error indicators such as TEMP PROTECTION or general PROTECTION alerts. Always use qualified personnel for installation and servicing.
Manufacturer information
FBT Elettronica SpA
Practical help
Common problems
System overheating
Check for fan malfunction or blocked ventilation. The system will trigger TEMP PROTECTION.
Network failure in daisy chain
The system includes a hardware bypass, but ensure no more than 8 modules are connected in a single chain to maintain stability.
Incorrect cardioid performance
Ensure the physical orientation of the subwoofers is correct and the appropriate CONFIG PRESET (CARDIO 1/2 FRONT) is selected.
Before use
- Inspect all suspension hardware for damage.
- Verify the load capacity of the mounting structure.
- Ensure the power source is grounded.
- Check that all locking pins are fully engaged.
- Confirm the correct DSP preset is selected for the intended configuration.
Images and diagrams
- The manual provides detailed wiring diagrams for XLR and Ethernet connections.
- Cardioid configuration diagrams illustrate the required physical placement of front and rear-facing subwoofers.
- The upgrade procedure diagram shows the internal placement of the optional Dante module.
Model compatibility
- Suspension hardware is fully compatible with MUSE 210 line array systems.
- Dante streaming requires the LND model with the Dante card installed.
- Use Cat5e or higher Ethernet cables for network connections.
