Fisher & Paykel 24" 16-Function Self-Cleaning Oven

Experience professional cooking with the Fisher & Paykel 24-inch built-in oven, featuring 16 versatile functions, intuitive guided cooking, and advanced pyrolytic self-cleaning technology.

Table of contents

Product Overview

The Fisher & Paykel 24-inch built-in oven combines contemporary design with professional-grade performance. With a generous 85L (3 cu ft) total capacity and 16 specialized cooking functions, it offers the flexibility to handle everything from delicate pastries to high-heat roasting. The oven is equipped with AeroTech technology for consistent heat distribution and ActiveVent for optimized moisture control, ensuring perfect results every time.

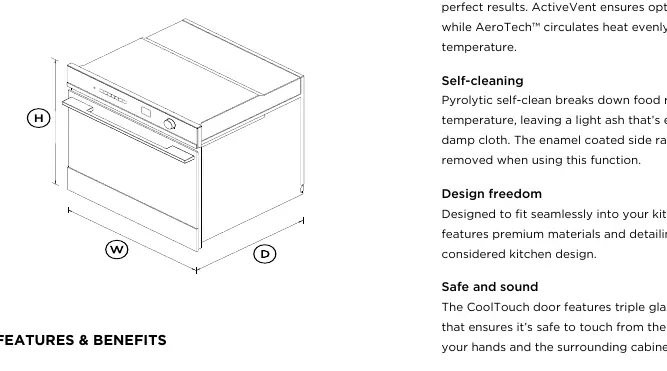

Oven dimensions diagram
Oven dimensions diagram

Guided Cooking and Control

Cooking is made simple with an intuitive 2.4-inch screen that provides a guided cooking experience. Users can select food types to receive step-by-step instructions, or allow the oven to automatically adjust temperature and heat settings. The interface includes electronic controls, adjustable audio, and Wi-Fi connectivity for a modern, user-friendly experience.

Safety and Maintenance

Safety is a priority with the CoolTouch door, which features triple glazing and an advanced cooling system to keep the exterior safe to touch. Additional safety features include a control panel key lock, non-tip shelves, and a balanced oven door. Maintenance is effortless thanks to the pyrolytic self-cleaning function, which incinerates food residue into a light ash that can be easily wiped away with a damp cloth. The interior is finished with acid-resistant graphite enamel for added durability.

Technical Specifications

  • Dimensions: 23 9/16" (H) x 23 7/16" (W) x 22 1/4" (D)
  • Capacity: 3 cu ft total, 2.5 cu ft usable, 6 shelf positions
  • Power Requirements: 208-240V, 60Hz, 16.6 - 19.4A
  • Temperature Range: 95°F - 540°F
  • Included Accessories: Broil pan, broil rack, full extension sliding shelves, pyrolytic proof shelf runners, wired temperature sensor
