FLEX BME 18.0-EC Parts List
Access the official parts list and exploded view diagram for the FLEX BME 18.0-EC power tool. Identify components, assembly parts, and maintenance requirements for repair.
Table of contents
Parts List and Exploded View for FLEX BME 18.0-EC

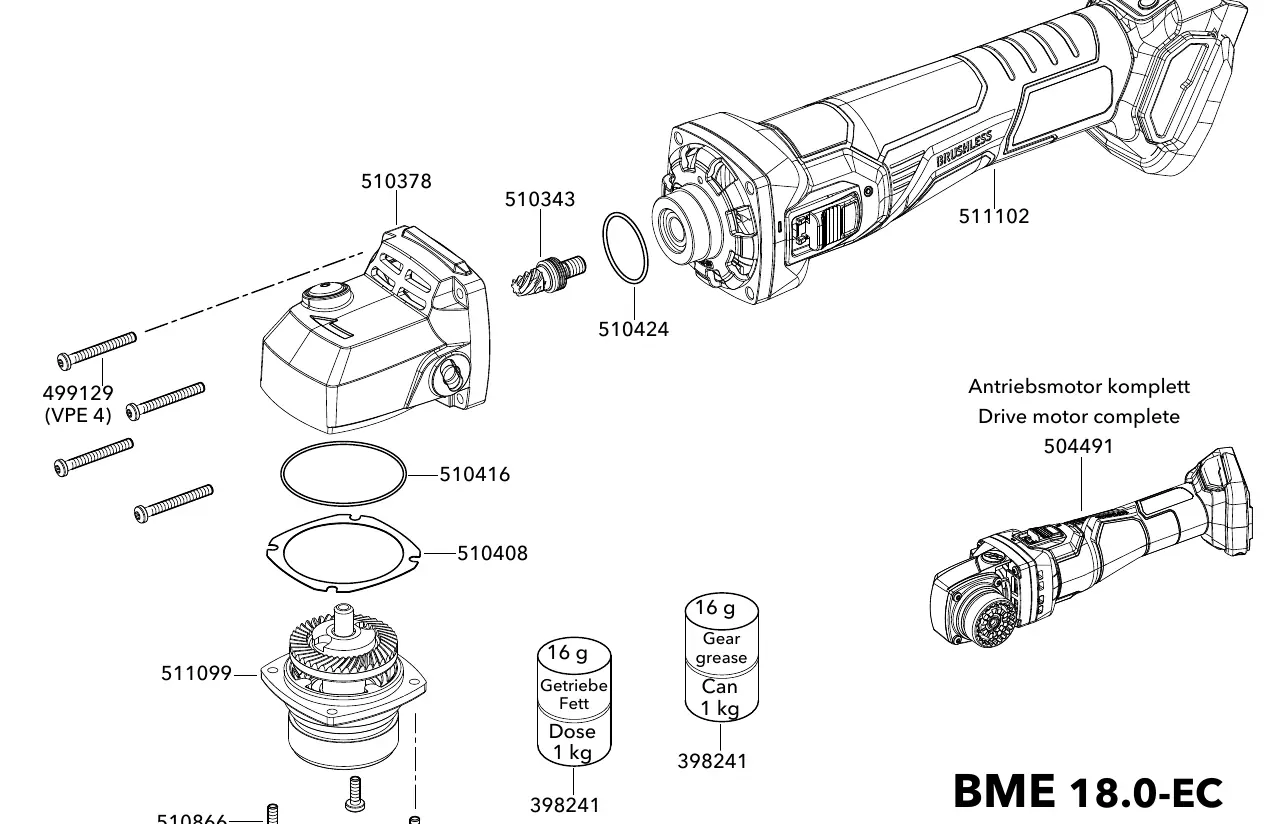

This document provides an exploded view diagram of the FLEX BME 18.0-EC power tool. It is intended for service technicians and users performing maintenance or repairs. The diagram illustrates the assembly of the drive motor, gearbox, and associated fasteners.
Using the Exploded View
The diagram displays the internal components of the tool. Use this reference to identify specific parts when ordering replacements or during disassembly and reassembly. Ensure all fasteners are accounted for during the process.
Maintenance and Lubrication
The diagram highlights the requirement for gear grease. Proper lubrication is essential for the longevity of the gearbox assembly. Use the specified gear grease (item 398241) during maintenance procedures.
Component Identification
Key components identified in the diagram include:
- Drive Motor: The complete motor assembly (504491).
- Gearbox Housing: The main housing component (510378).
- Fasteners: Various screws (499129, 510866) used to secure the housing and motor.
- Seals and Gaskets: O-rings and gaskets (510424, 510416, 510408) to ensure proper sealing of the gearbox.
Manufacturer information
FLEX
Practical help
Common problems
Check for sufficient gear grease and inspect internal gears for wear using the exploded view.
Verify all fasteners (499129, 510866) are tightened to specification.
Before use
- Ensure the battery is removed before disassembly.
- Verify you have the correct replacement parts based on the diagram.
- Use only recommended gear grease (398241).
