Parts List for FLEX IW 1/2" 750 18.0-EC Impact Wrench
Access the official parts list and exploded view diagram for the FLEX IW 1/2" 750 18.0-EC impact wrench. This guide helps you identify components and understand the assembly structure for maintenance and repair.
Table of contents
Quick guide from the manual
This document provides an exploded view diagram of the FLEX IW 1/2" 750 18.0-EC impact wrench. It is intended for identifying individual components and their assembly order for maintenance and repair purposes.

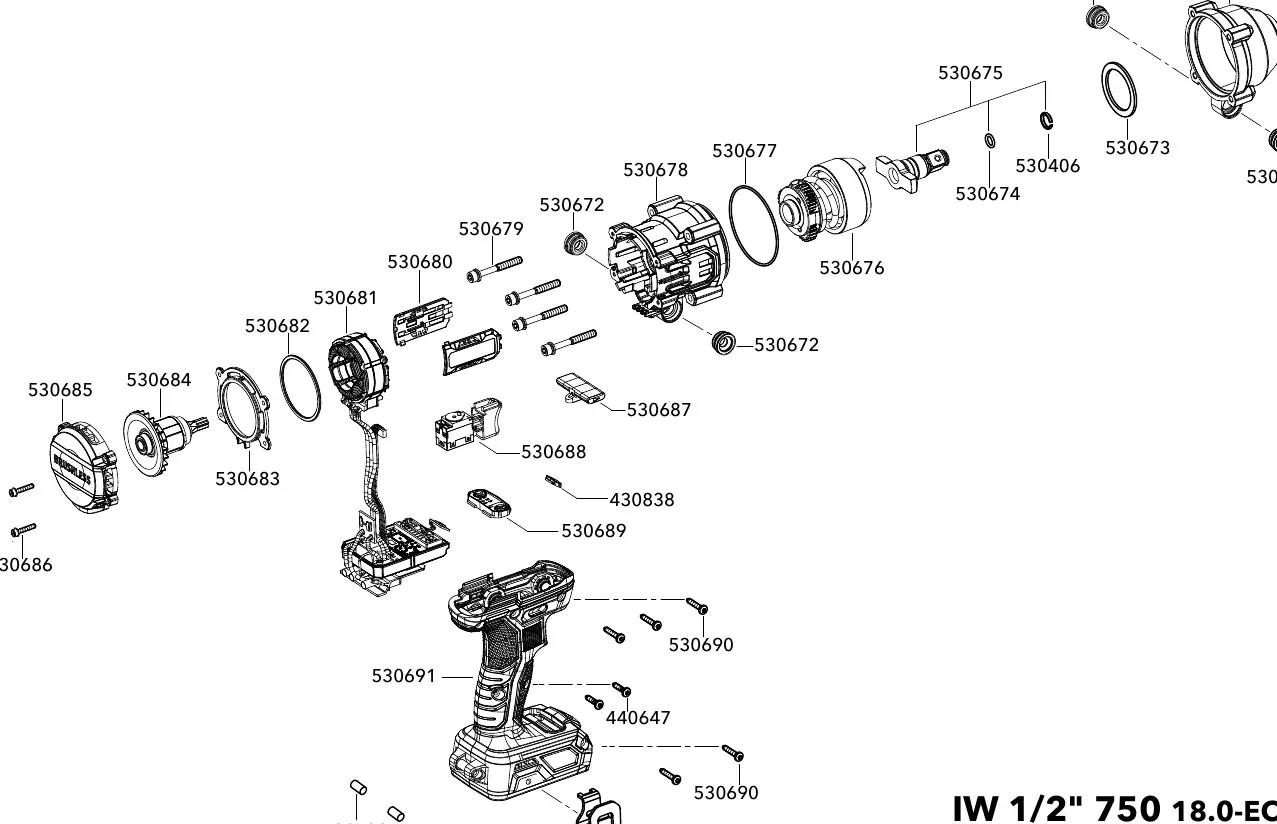

Exploded view and parts identification
The diagram illustrates the internal and external assembly of the tool. Each component is marked with a specific reference number. Use these numbers to identify the correct replacement parts when ordering from authorized service centers or suppliers.
Maintenance and repair
When performing maintenance or repairs on the impact wrench, always ensure the battery pack is removed to prevent accidental activation. Refer to the exploded view to understand the correct sequence of assembly and the placement of internal components such as the motor, gears, and housing parts.
Manufacturer information
FLEX
Practical help
Common problems
Locate the component in the exploded view diagram and match it with the corresponding reference number provided in the official parts list.
Before use
- Ensure the battery is disconnected before attempting any disassembly or repair.
- Verify the part number against the exploded view diagram before ordering replacements.
- Use only genuine replacement parts to maintain tool performance and safety.
