Transmission Details and Swap Guide for Ford 10R80, 10R100, & 10R60
A comprehensive technical guide for Ford 10R80, 10R100, and 10R60 transmissions. Includes donor selection for V8 swaps, clutch plate configurations, valve body application details, and identification of separator plates.
Table of contents
Quick Guide for Transmission Selection and Identification
This document provides technical specifications and compatibility details for Ford 10R80, 10R100, and 10R60 transmissions, primarily for use in engine swaps and performance modifications. It covers donor transmission selection, clutch plate configurations, and valve body identification.
Donor Transmission Selection for V8 Swaps
Choosing the right donor transmission depends on the engine type. Below are the recommended choices:
- Godzilla: Best choice is 10R100 from 2023-up Super Duty. Second choice is 10R80 from V8 F150 or Mustang.
- Coyote: Best choice is V8 F150. Second choice is V8 Mustang.
- 4.6L & 5.4L Modular: Best choice is V8 F150. Second choice is V8 Mustang.
- Small Block Ford / Other V8s: EcoBoost V6 transmission with adapter is often the most economical option for applications up to 400 ft-lb.
Clutch Friction Plate Quantity
Clutch plate counts vary by transmission model and application. The 10R80-1 is the strongest configuration (F150, Expedition, Transit, V8 Mustang, 3.0L Explorer, and all 10R100s). The 10R80 2.3L-2 is the lightest-duty configuration but handles up to 400 ft-lbs.
Valve Body and Transmission Application
Valve body types (A, C, D, E, F, J, K) vary by vehicle line and model year. Always verify the specific part number and separator plate notch pattern before purchasing or installing. Note that 10R140 and 10R80MHT (hybrid) transmissions use unique valve bodies that are not interchangeable with these parts.
Separator Plate Identification
The separator plate notch pattern is a critical identifier for the valve body type. Compare the physical notch pattern on your part against the engineering part numbers provided in the identification section to ensure correct compatibility.
Valve Body Features Explained
- Manual Shift (M-Shift): Allows use of conventional shifters (column, floor, aftermarket). This is the only method currently supported by Quick 10.
- Electronic Shift (E-Shift): Requires an electronic shift control module. 2021 and later E-Shift valve bodies can often be converted to manual shift.
- Gain Control Valve: Reduces pressure range of D and E clutch regulator valves. Eliminated in 2021 and later Ford valve bodies.
- TCC Damper: Used to smooth solenoid pulses. Not present in most 10R80 valve bodies.
- Thermal Bypass Valve: Used in 2018-2023 Mustang applications to regulate transmission fluid temperature.
- Engine Start-Stop: Present in almost every 10R80 and 10R60 (except 2018-2023 Mustang). Not present in 10R100.
Manufacturer information
Ford Motor Company
Practical help
Common problems
E-Shift to M-Shift conversion
2021-up F150 units require E to M-Shift conversion. 2021 and later E-Shift valve bodies can be converted with a simple parts kit.
6-bolt crankshaft compatibility
6-bolt crankshafts will require a custom flexplate.
Hybrid transmission incompatibility
10R140 and 10R80MHT (hybrid) transmissions use unique valve bodies that do not interchange with standard 10R80/10R100/10R60 parts.
2.3L EcoBoost 4-cylinder swap
There are currently no known adapters for 2.3L EcoBoost 4-cylinder transmissions for V8 swaps.
Before use
- Identify your engine type (Godzilla, Coyote, Modular, EcoBoost, etc.).
- Verify the transmission model (10R80, 10R100, or 10R60).
- Check the vehicle year and line for valve body compatibility.
- Inspect the separator plate notch pattern to confirm the part type.
- Determine if your application requires Manual Shift (M-Shift) or Electronic Shift (E-Shift).
Specs in practice
- Thermal Bypass Valve
- Used in 2018-2023 Mustangs to bypass the cooler when cold for faster warm-up.
Images and diagrams

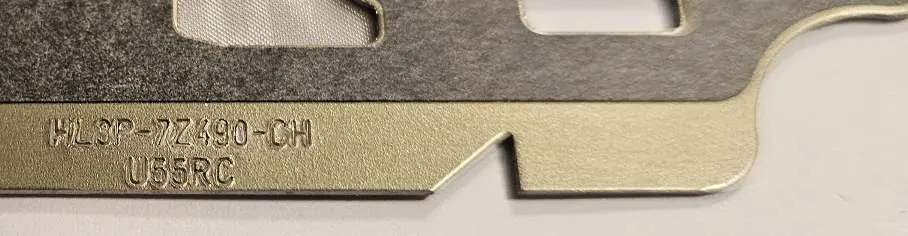

- Separator plate notch patterns are used to identify the specific valve body type (A, C, D, E, F, J, K).
Model compatibility
- Quick 10 does not currently support 10R100 and 10R60.
- Some 3.3L Explorers are hybrids (10R80MHT); verify before purchasing.
- Valve body part numbers are Ford service part numbers and differ from engineering numbers stamped on parts.
