Specifications for Furrion Chill Air Conditioner System FACR15SA and FACT11MA
Technical specifications and feature overview for the Furrion Chill Air Conditioner system, including the 15.5K Rooftop Unit (FACR15SA) and the Air Distribution Box with Manual Control (FACT11MA).
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides technical specifications and feature overviews for the Furrion Chill Air Conditioner system components, specifically the 15.5K Rooftop Unit (FACR15SA) and the Air Distribution Box with Manual Control (FACT11MA). It outlines performance metrics, electrical requirements, and physical dimensions for installation planning.
15.5K Rooftop Unit (FACR15SA)
The FACR15SA is a high-efficiency rooftop air conditioner designed for RV and mobile applications. It features a lightweight, aerodynamic, and UV-resistant design.
Performance and Electrical
- Capacity: 15,500 BTU
- EER: 2.19
- Refrigerant: R410A
- Power Supply: 115V/60Hz/1Ph
- Power Consumption (Cooling): 1,720 Watts
- Amps (Cooling): 15.4A
- Outdoor Sound Pressure Level: 80dB
- IP Class: IP24

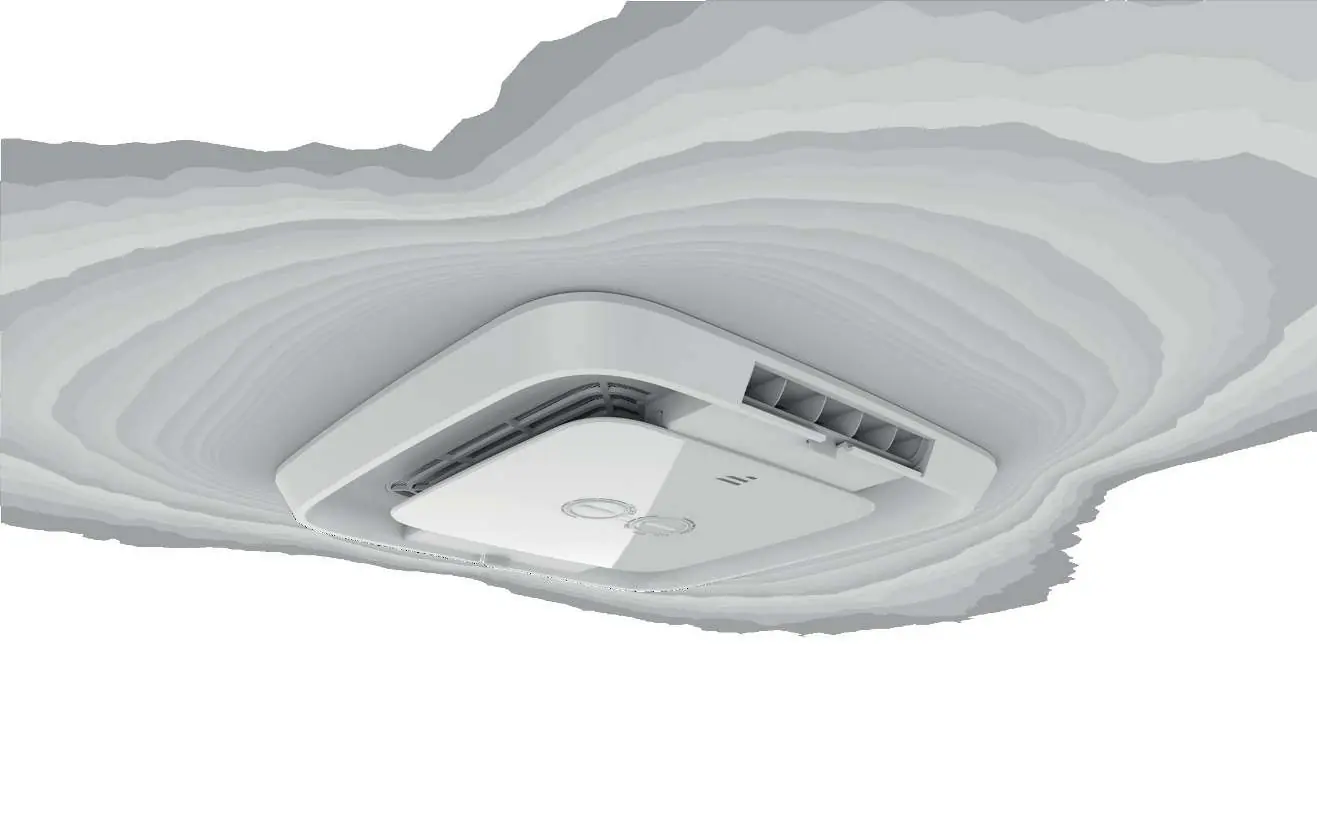

Air Distribution Box (FACT11MA)
The FACT11MA is the interior air distribution component designed for manual control of the air conditioning system.
Key Features
- Control: Mechanical control with 8 positions
- Fan Speeds: 3 (High/Med/Low)
- Air Flow: 2-way air flow
- Maintenance: Detachable filter
- Compatibility: Can be used for ducted or non-ducted systems
Controller Specifications
- Input Power: AC 115V
- Frequency: 60Hz
- Compressor & Condenser Fan Relay: AC 115V/20A
- Evaporator Fan Motor Relay: AC 115V/5A
- Temperature Range: 64.4°F to 86°F (18°C to 30°C)
Manufacturer information
Furrion
Practical help
Common problems
Verify the power supply is 115V/60Hz and check that the set temperature is within the operating range (60°F to 86°F for the rooftop unit).
Ensure the air distribution box filter is clean; the filter is detachable for maintenance.
Before use
- Verify the power supply matches the 115V/60Hz requirement.
- Confirm the system is compatible with your ducted or non-ducted installation setup.
- Check that the rooftop unit (FACR15SA) and air distribution box (FACT11MA) are correctly paired.
- Ensure the set temperature is within the operational range of 60°F to 86°F.
