This manual provides instructions for the assembly of the G21 metal shelf, designed for use in garden houses and greenhouses. Ensure all parts are accounted for before beginning assembly.
Product dimensions
The assembled shelf measures 115cm in length, 40cm in width, and 75cm in height.
Parts list
- AM02-1: Shelf (2 pieces)
- AM02-2: Support (4 pieces)
- AM01-3: Bracket (16 pieces)
- AM02-4: Bolt/Nut set (48 pieces)
Assembly instructions

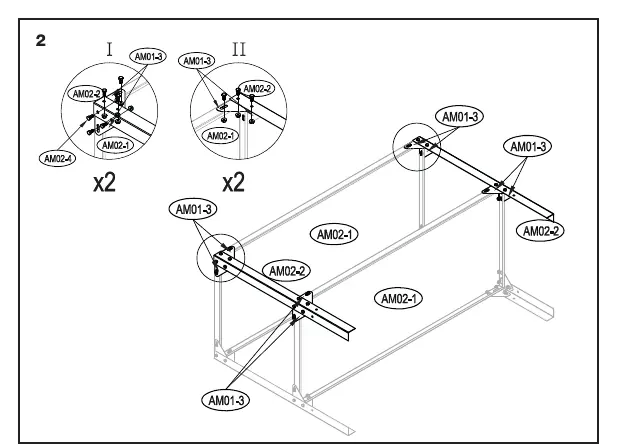

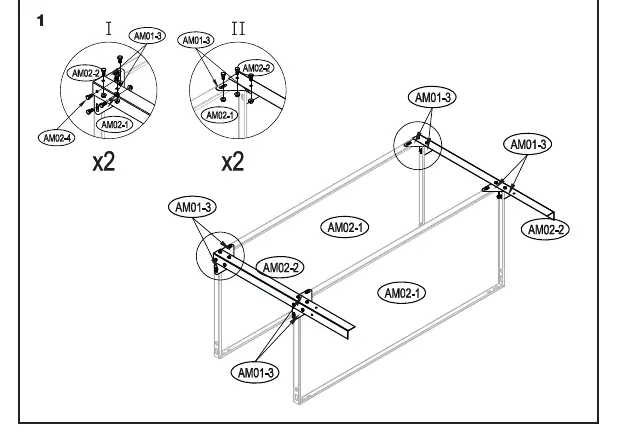

Follow the assembly diagrams provided in the manual. Ensure all brackets and supports are aligned correctly before tightening the bolts. The assembly process involves connecting the supports to the shelves using the provided brackets and bolt/nut sets.
Manufacturer information
G21
Practical help
Common problems
Check the parts list on page 5 and contact the retailer if any items are missing.
Ensure all bolts (AM02-4) are tightened securely during assembly.
Before use
- Verify all parts are present according to the parts list
- Ensure you have a clear, flat space for assembly
- Check that you have the necessary tools for tightening bolts
