This document provides essential instructions for the assembly and operation of the G21 Platform Truck. It is designed to help users set up the unit quickly and understand the folding handle mechanism.

Assembly Instructions

Before using the platform truck, ensure all components are present and correctly installed. The assembly requires the following parts:

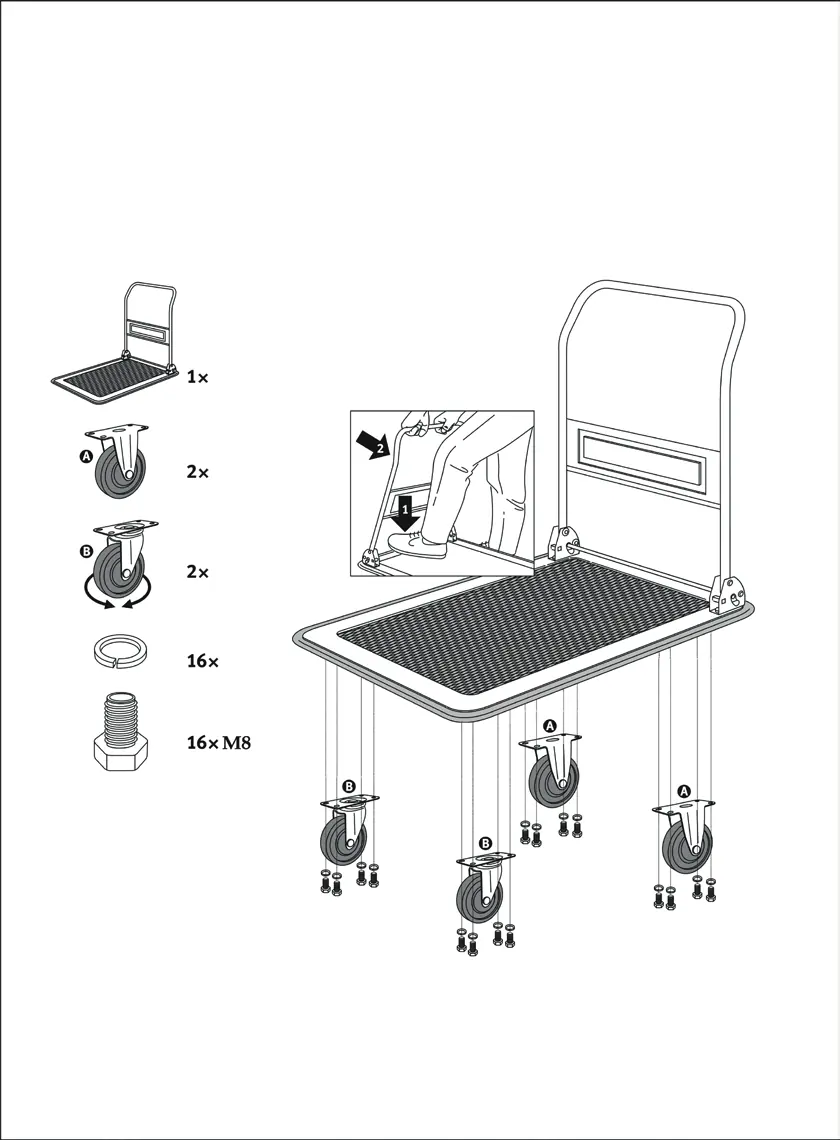

Assembly diagram showing wheel placement and folding mechanism

1x Platform base
2x Fixed wheels (marked A)
2x Swivel wheels (marked B)
16x Washers
16x M8 Bolts

To assemble, attach the wheels to the underside of the platform base. Use the provided M8 bolts and washers to secure each wheel firmly. Ensure that the fixed wheels (A) and swivel wheels (B) are positioned according to the assembly diagram to ensure proper maneuverability.

Operating Instructions

The platform truck is equipped with a folding handle for easy storage. To operate the folding mechanism:

Locate the foot pedal at the base of the handle.
Press the pedal down firmly to release the locking mechanism.
While the pedal is depressed, adjust the handle to the desired position (folded or upright).
Release the pedal to lock the handle in place.

Manufacturer information

G21

Brand profile

Manufacturer website http://www.g21-warranty.com Support http://www.g21-warranty.com

Practical help

Common problems

Handle does not fold or unfold

Ensure the foot pedal mechanism at the base of the handle is fully depressed to release the locking latch.

Truck feels unstable or wobbly

Check that all 16 M8 bolts securing the wheels to the platform base are tightened securely.

Before use

Verify all parts are present: 1 platform, 2 fixed wheels, 2 swivel wheels, 16 washers, 16 M8 bolts.
Ensure the assembly surface is flat and stable.
Check that all bolts are tightened before loading the truck.
Test the folding handle mechanism to ensure it locks securely in the upright position.
