The Gallet VEN 11T is a tower fan designed for indoor air circulation. It features three speed settings, an oscillation function, and a timer (up to 120 minutes). The device is intended for household use only and must not be used in bathrooms, near water, or in environments with fire/explosion risks.
Assembly
- Unscrew the base nut (P9) from the bottom of the fan body (P1).
- Assemble the base (P8).
- Attach the base (P8) to the bottom of the fan body (P1) and secure it by tightening the nut (P9). Ensure the power cord (P11) is routed through the groove (P10).
Operation
Connect the fan to a power outlet. Use the buttons on the base (P4) to select the speed:
- (3) High speed
- (2) Medium speed
- (1) Low speed
- (0) Off
Oscillation: Press the oscillation button (P6) to start or stop the side-to-side movement.
Timer: Use the rotary regulator (P5) to set the operation time (1-120 minutes). The fan will automatically turn off when the time expires. For continuous operation, set the regulator to the continuous symbol.
Maintenance
Always unplug the device before cleaning. Wipe the unit with a soft, damp cloth or sponge. Do not use abrasive cleaners or allow water to enter the device.
Troubleshooting
If the device does not work, check the following:
- Ensure the power cord is firmly plugged in.
- Verify the power outlet is functional by testing it with another appliance.
- Check the power cord for any visible damage.
Practical help
Common problems
Fan does not work
Check if the power cord is firmly plugged in, verify the outlet has power, and inspect the cord for damage.
Before use
- Ensure the fan is fully assembled before switching it on.
- Check that the voltage on the type label matches your local power supply.
- Place the fan on a stable surface away from heat sources and wet areas.
- Ensure the air inlet and outlet openings are not covered.
Specs in practice
- Power cord length
- 1.5 m
Images and diagrams

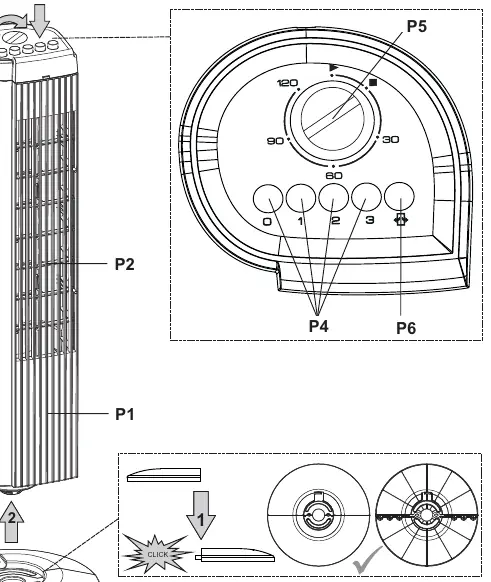

- P4: Speed control buttons
- P5: Timer regulator
- P6: Oscillation switch
Model compatibility
- Not for outdoor use.
- Do not use in bathrooms (zones 0, 1, 2) or near water.
- Not intended for commercial use.
