Giant Residential Electric Water Heaters

Product Overview

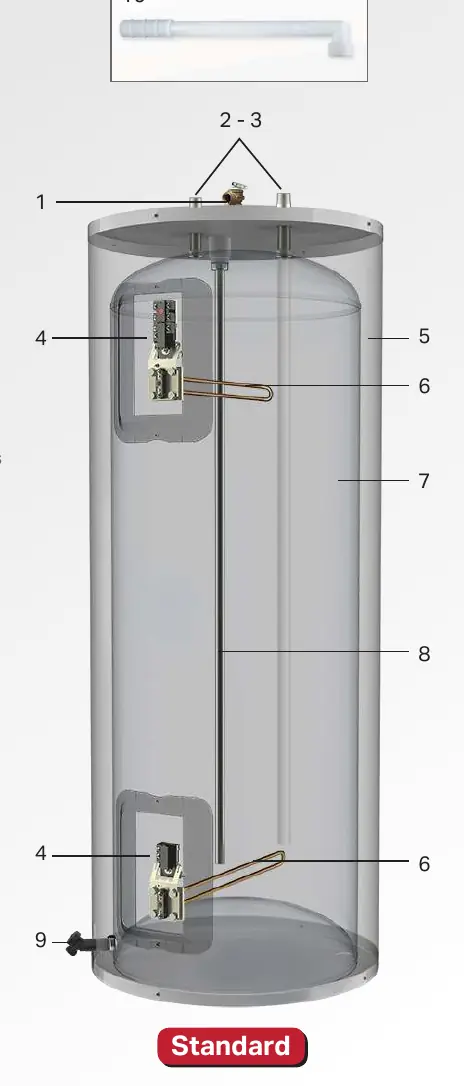

Giant residential electric water heaters are designed to provide reliable hot water for households. The product line includes Standard, Cascade, and Super Cascade models, with advanced EcoPeak technology options available for energy-efficient performance. These units are built with high-quality materials, including glass-lined inner tanks and magnesium anodes, to ensure durability and long-term protection against corrosion.

Key Features and Benefits

• Temperature & Pressure-Relief Valve: Factory-installed to protect the tank from excessive pressure and temperature.
• Di-electric Nipples: Factory-installed to extend the life of the heater by providing corrosion protection.
• Heat Traps: Reduce heat loss through inlet and outlet fittings.
• Automatic Temperature Control: Adjustable thermostats with a safety cut-off for abnormal conditions.
• Eco-friendly Insulation: Thick, uniform insulation that contains no CFCs, HCFCs, HFCs, or VOCs.
• Glass-Lined Inner Tank: Blue cobalt glass enriched with zircon fused to steel for superior corrosion resistance.
• Magnesium Anode: Provides sacrificial protection against corrosive water effects.

EcoPeak Technology

Models equipped with EcoPeak technology utilize a three-element system to spread energy consumption throughout the day. This design reduces stress on electrical components, increases reliability, and lowers collective electricity demand during peak periods without impacting hot water availability or increasing electricity costs.

Installation and Maintenance

Units must be installed according to local codes. Toxic chemicals, such as those used for boiler treatment, must never be introduced into the system. The heaters should not be connected to existing heating systems previously used with non-potable water appliances. The magnesium anode should be monitored as part of regular maintenance to ensure continued tank protection. The drain valve allows for easy drainage when maintenance is required.

Safety and Disposal

Always ensure the unit is properly grounded and the temperature-pressure relief valve is functional. If the unit needs to be replaced, follow local regulations for the disposal of water heaters and their components. The insulation materials used are eco-friendly, but local recycling guidelines should be consulted.
