GLEN SA 4017 Cold Press Slow Juicer User Guide
Comprehensive user guide for the GLEN SA 4017 Cold Press Slow Juicer, covering assembly, operation, maintenance, and troubleshooting.
Table of contents

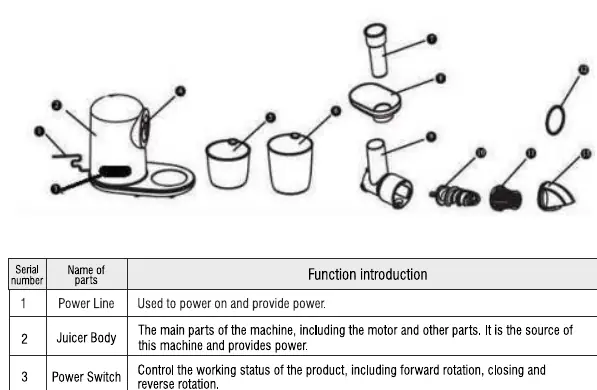

Product Overview
The GLEN SA 4017 is a high-efficiency cold press slow juicer designed for home use. It operates at 150W and is engineered to extract juice while preserving nutrients. The unit features a robust motor with an intelligent protection chip that prevents overheating by automatically stopping after 20 minutes of continuous use.
Safety Instructions
- Always disconnect the power supply before assembling, disassembling, or cleaning the unit.
- Do not insert fingers or sharp objects into the feed inlet. Use the provided pusher rod.
- Ensure all removable parts are correctly installed before switching on the power.
- This appliance is not intended for use by children or individuals with reduced physical or sensory capabilities without supervision.
- Do not immerse the main motor body in water.
Operation

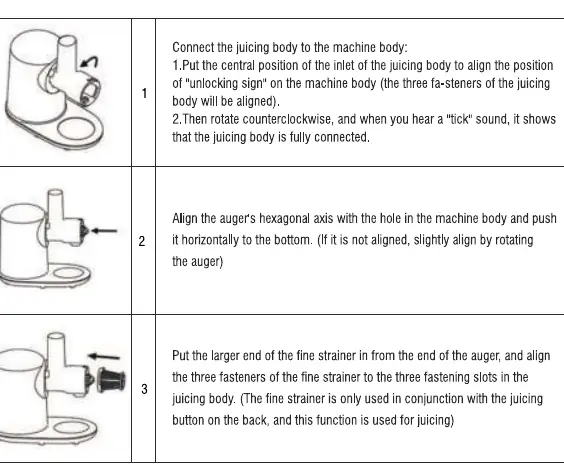

To assemble the juicer, align the juicing body with the motor base and rotate counter-clockwise until it clicks. Insert the auger, followed by the fine strainer, and secure the juicing body cover. Ensure the juice and pomace cups are correctly positioned under their respective outlets. Before juicing, cut fruits and vegetables into small pieces and remove hard seeds, pits, or thick skins. Do not use the machine for hard ingredients like sugar cane or mango. Use the ON switch for normal operation and the Reverse button if the auger becomes jammed.
Maintenance and Cleaning
Clean the appliance immediately after each use to prevent residue buildup. The motor base should only be wiped with a dry or damp cloth; never submerge it in water. Removable parts can be washed with clean water. Do not use abrasive cleaners or steel wool. Ensure all parts are completely dry before reassembling or storing.
Troubleshooting
- Unit does not start: Check the power connection and ensure the plug is secure.
- Machine stops during use: This may be due to overheating or excessive ingredients. Allow the motor to cool for 20-30 minutes.
- Noise during operation: Ensure the auger and strainer are properly installed. Some noise is normal depending on the ingredients.
- Difficulty removing parts: Clean any residue from the juicing body and use the reverse function if necessary to clear obstructions.
