User Manual for Globo Lighting 21016B Desk Lamp
Quick guide for the Globo Lighting 21016 series desk lamp. Learn how to charge the battery, operate the light modes, and understand technical specifications.
PDF source: Deutsch · summary: English
Quick answers from the manual
Quick answer
- The Globo Lighting 21016 series is a rechargeable desk lamp. It is operated via a pull switch to cycle through three color temperatures (3000K, 4000K, 6000K) and requires a 5V USB charger for charging. p. 1
Key actions
- Charge the lamp p. 1
- Change light mode p. 1
First start
- Charge the battery for approximately 4 hours before first use. p. 1
Show 3 more answers Show less
Maintenance and reset
- The LED light source is non-replaceable and integrated into the product. p. 2
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Battery | 1x 18650 3.7V 1800mAh | Rechargeable Li-ion battery | p. 1 |
| LED Power | MAX 1.5W | Maximum power consumption | p. 1 |
Where to find it in the PDF
- Operation and Charging Instructions p. 1
- Safety and LED Disclaimer p. 2
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Globo Lighting 21016 series is a rechargeable desk lamp designed for indoor use. It features a pull-switch operation to cycle through three color temperatures and requires a 5V USB charger for battery maintenance.

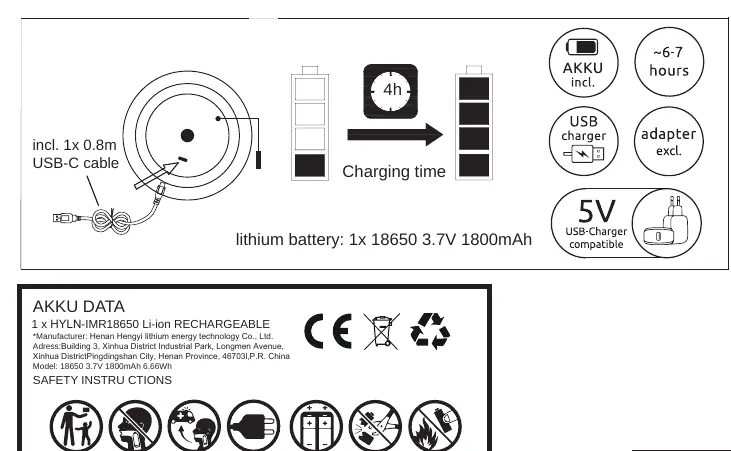

Charging the battery
The lamp is powered by a rechargeable 18650 Li-ion battery. To charge the device:
- Use the included 0.8m USB-C cable.
- Connect the cable to a 5V USB charger (not included).
- The estimated charging time is approximately 4 hours.
Operation
The lamp is operated using a pull switch located on the lamp body. Pulling the switch allows you to cycle through the following light modes:
- OFF
- 3000 Kelvin (Warm white)
- 4000 Kelvin (Neutral white)
- 6000 Kelvin (Cool white)
Technical specifications
- Battery: 1x 18650 3.7V 1800mAh Li-ion
- LED Power: MAX 1.5W DC 3.7V
- Protection: IP44 (Splash-proof)
- Charging: 5V USB-Charger compatible
Safety and maintenance
The LED light source in this product is non-replaceable and is permanently integrated into the product design. Do not attempt to disassemble the lamp or replace the LED module. Ensure the lamp is placed on a stable surface during use.
Manufacturer information
Globo Lighting
Practical help
Common problems
Ensure the battery is fully charged. Connect the lamp to a 5V USB power source using the provided cable.
Verify that the USB-C cable is securely connected to both the lamp and the power adapter. Ensure the power adapter is functional and provides 5V output.
Before use
- Charge the lamp fully before the first use (approx. 4 hours).
- Ensure you have a compatible 5V USB charger (not included).
- Check that the lamp is placed on a stable, flat surface.
- Verify the USB-C cable is undamaged.
