Globo Lighting 16047T LED Light Fixture
Quick guide for the Globo Lighting 16047T LED light fixture. Includes installation steps, technical specifications, and safety information regarding the non-replaceable light source.
Table of contents
Important Information
This document provides essential installation and safety information for the Globo Lighting 16047T LED light fixture. Please ensure the power is switched off before beginning any installation work. The light source in this product is integrated and cannot be replaced.
Installation

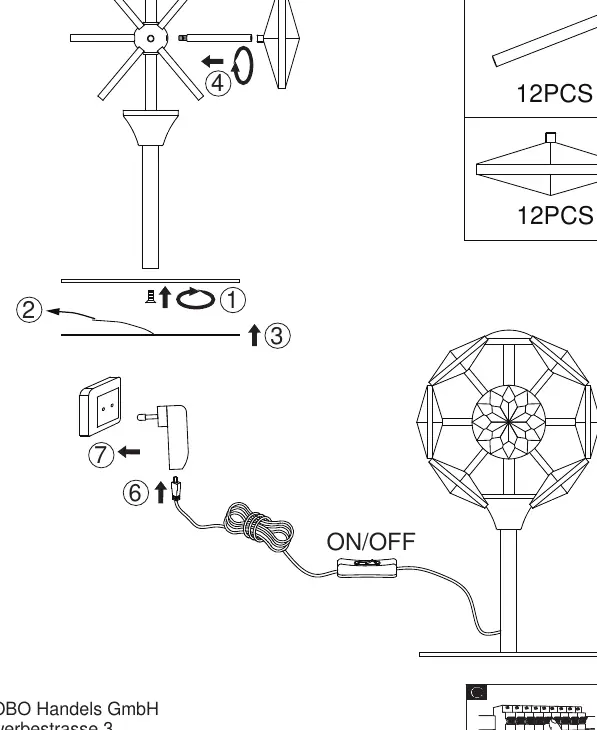

The installation process involves a 7-step procedure as illustrated in the product diagram:
- Step 1-3: Prepare the fixture components for assembly.
- Step 4-5: Connect the electrical components according to the diagram.
- Step 6-7: Finalize the mounting and secure the fixture to the power source.
Ensure all connections are secure and the fixture is properly mounted before turning the power back on.
Technical Specifications
- Power: 8W LED
- Operating Voltage (LED): 24V
- Input Voltage: 220-240V~ 50/60Hz
- Energy Efficiency Class: E
Safety and Maintenance
Important: The light source is not interchangeable because it is permanently connected to the product due to its design. Do not attempt to replace the LED light source yourself.
The control gear (driver) can only be replaced by a qualified professional. If the light fixture malfunctions, consult a specialist for repair or replacement of the control unit.
Manufacturer information
Globo Lighting
Practical help
Common problems
Verify that the power supply is active and that all electrical connections are secure. Ensure the fixture is correctly wired.
The LED light source is non-replaceable. If it fails, the entire fixture may need to be replaced.
The control gear must only be replaced by a qualified professional.
Before use
- Ensure the main power supply is switched off at the circuit breaker.
- Verify that the input voltage matches 220-240V~ 50/60Hz.
- Check that all necessary mounting hardware is present.
- Confirm that the installation surface can support the weight of the fixture.
