Installation Guide for Globo 21005-4H Pendant Light
Step-by-step installation guide for the Globo 21005-4H pendant light. Includes wiring instructions, mounting steps, and technical specifications for bulb compatibility.
Quick answers from the manual
Quick answer
- The Globo 21005-4H is a pendant light requiring four E27 bulbs (max 40W each). Installation involves mounting the bracket, connecting the wiring (N, Earth, L), and securing the canopy. p. 1
Key actions
- Turn off power p. 1
- Install bulbs p. 1
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Bulb Type | E27 | Standard screw base | p. 1 |
| Max Wattage | 40W | Maximum power per bulb | p. 1 |
Show 1 more answers Show less
Where to find it in the PDF

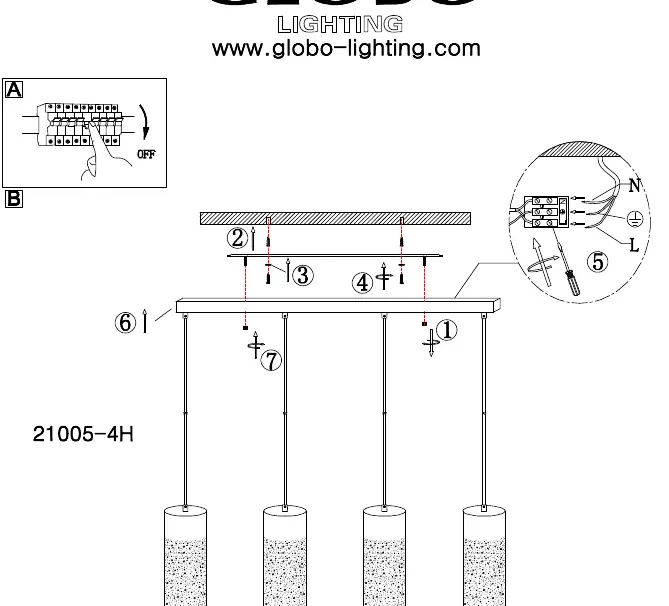

- Installation Diagram p. 1
Table of contents
Quick guide from the manual
This document provides the necessary steps to safely install the Globo 21005-4H pendant light. Always ensure the power supply is switched off at the main circuit breaker before starting any electrical work.
Installation
- Preparation: Ensure the power is turned off at the main fuse box.
- Mounting: Drill holes in the ceiling and secure the mounting bracket using the provided screws and plugs.
- Wiring: Connect the ceiling power supply wires to the terminal block on the fixture. Ensure the Neutral (N), Earth (Ground), and Live (L) wires are connected to the corresponding terminals.
- Assembly: Secure the fixture canopy to the mounting bracket.
- Bulb Installation: Insert four E27 bulbs (not included) into the sockets.
- Completion: Turn the power back on at the main fuse box.
Technical Specifications
- Bulb Type: 4x E27
- Maximum Wattage: 40W per bulb
- Voltage: 230V~ 50Hz
Manufacturer information
Globo Lighting
Practical help
Common problems
Light does not turn on
Verify that the power is switched on at the circuit breaker and ensure all bulbs are securely screwed into the sockets.
Wiring uncertainty
Ensure the Neutral (N), Earth (Ground), and Live (L) wires from the ceiling are matched correctly to the terminals on the fixture block.
Before use
- Ensure power is switched off at the main fuse box
- Verify ceiling structure can support the weight of the fixture
- Check that you have 4x E27 bulbs (not included)
- Ensure you have appropriate tools (screwdriver, drill)
