Globo 67288D LED Ceiling Light Installation Guide
Installation guide for the Globo 67288D LED ceiling light. Includes wiring diagrams, safety warnings, and technical specifications.
Quick answers from the manual
Quick answer
- This manual provides installation instructions and technical specifications for the Globo 67288D LED ceiling light. p. 1
Key actions
- Turn off the power supply before starting installation. p. 1
- Mount the fixture to the ceiling. p. 1
- Connect the electrical wiring to the terminal block. p. 1
- Turn on the power supply after installation is complete. p. 1
Maintenance and reset
- The light source and control gear are not replaceable. p. 2, 3, 4
Show 2 more answers Show less
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Power | 19W | Power consumption | p. 1 |
| Voltage | 220-240V~ 50/60Hz | Operating voltage | p. 1 |
Where to find it in the PDF
- Installation Instructions p. 1
- Light Source Information p. 2, 3, 4
Table of contents
Quick guide from the manual
This document provides essential installation instructions for the Globo 67288D LED ceiling light. Always ensure the main power supply is disconnected before beginning any electrical installation.
Installation

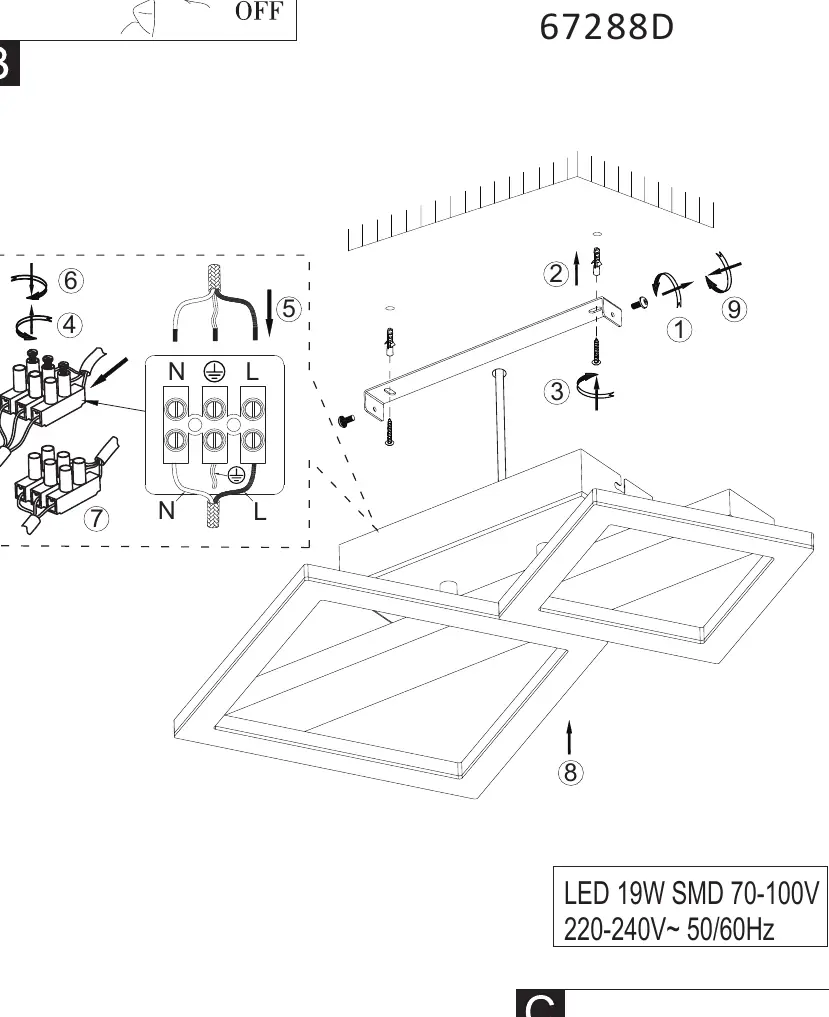

Follow the steps outlined in the provided diagram:
- Power Off: Ensure the main power supply is switched off at the circuit breaker (Step A).
- Wiring: Connect the electrical supply wires to the terminal block. Ensure the Live (L) and Neutral (N) wires are connected to the corresponding terminals.
- Mounting: Secure the fixture bracket to the ceiling and attach the light unit.
- Power On: Once installed, switch the power back on (Step C).
Technical Specifications
- Power: 19W LED SMD
- Voltage: 220-240V~ 50/60Hz
Important Safety Information
The light source and the control gear within this product are not replaceable. They are permanently integrated into the product design. Do not attempt to disassemble or replace these components.
Manufacturer information
Globo Lighting
Practical help
Common problems
Check if the power supply is connected correctly to the L and N terminals and ensure the circuit breaker is on.
The light source is not replaceable. If it fails, the entire unit must be replaced.
Before use
- Ensure the main power supply is turned off.
- Verify the voltage matches 220-240V~.
- Check that all wiring connections are secure in the terminal block.
- Ensure the mounting surface can support the fixture.
