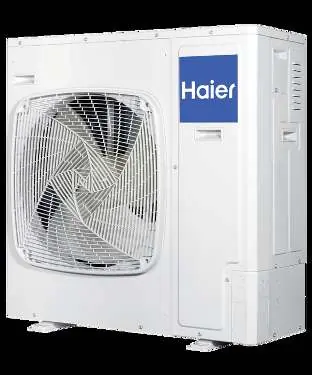

Quick Reference Guide for Haier 1UH071N1ERG Smart Power Outdoor Unit
Quick reference guide for the Haier 1UH071N1ERG Smart Power Outdoor Unit. Includes technical specifications, dimensions, power requirements, and operating temperature ranges.
Table of contents
Quick guide from the manual
This document serves as a quick reference guide for the Haier 1UH071N1ERG Smart Power Outdoor Unit. It provides essential technical specifications, physical dimensions, and operating parameters required for installation and planning.
Technical Specifications
The unit is designed for ducted air conditioning systems with the following performance characteristics:
- Cooling Capacity: 7.1 kW
- Heating Capacity: 8.0 kW
- Compressor Type: Twin rotary
- DC Inverter: 180° sine wave
- Refrigerant: R410a
- Airflow: 890 l/s
- Sound Power: 64 dBA
- Sound Pressure: 47 dBA
Operating Conditions
The unit is designed to operate within the following temperature ranges:
- Cooling Mode: -15°C to +50°C
- Heating Mode: -20°C to +24°C
Dimensions and Weight
Ensure the installation site can support the physical dimensions and weight of the unit:
- Height: 965 mm
- Width: 950 mm
- Depth: 370 mm
- Net Weight: 80 kg
Power Requirements
The unit requires a single-phase power supply:
- Supply Voltage: 220-240V
- Supply Frequency: 50Hz
Warranty and Support
The product includes a 5-year warranty on parts and labour. For further assistance, including detailed installation guides or service manuals, visit the official Haier website at haier.com or contact customer support at 0800 372273.
Official resources from the manual
Manufacturer information
Haier
Practical help
Before use
- Verify that the power supply is single-phase 220-240V, 50Hz.
- Ensure the installation location can support the 80kg weight of the unit.
- Confirm that the operating environment falls within the specified temperature ranges (-15°C to +50°C for cooling, -20°C to +24°C for heating).
- Check that the refrigerant type (R410a) is compatible with your system requirements.
Specs in practice
- Cooling Capacity
- The maximum cooling output of 7.1 kW.
- Heating Capacity
- The maximum heating output of 8.0 kW.
- Sound Pressure
- The noise level emitted by the unit during operation (47 dBA).
