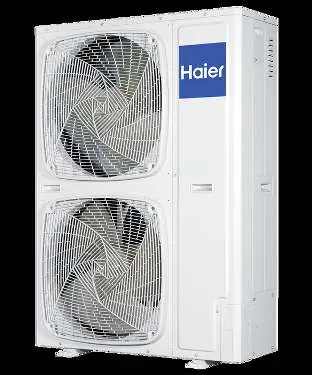

Haier 1UH125P1ERK Smart Power Outdoor 3Phase 12.5 kW Quick Reference Guide

Quick guide from the manual

This document serves as a quick reference guide for the Haier 1UH125P1ERK Smart Power Outdoor 3-phase unit. It provides essential technical specifications, dimensions, and installation requirements necessary for planning and setup.

Technical Specifications

The unit is designed for high-performance climate control with the following key specifications:

• Cooling Capacity: 12.5 kW
• Heating Capacity: 13.7 kW
• COP: 3.5
• EER: 3.4
• Compressor Type: Twin rotary
• Inverter: DC inverter 180° sine wave
• Refrigerant: R410a

Dimensions and Weight

Ensure the installation site can accommodate the physical dimensions and weight of the unit:

• Height: 1350 mm
• Width: 950 mm
• Depth: 370 mm
• Net Weight: 108 kg

Installation and Power Requirements

The unit requires a 3-phase power supply and specific piping connections:

• Power Phase: Three
• Supply Voltage: 380-415V
• Supply Frequency: 50/60Hz
• Liquid Line: 9.52 mm
• Suction Line: 15.88 mm
• Maximum Indoor Units: 1

Operating Conditions

The unit is designed to operate within the following temperature ranges:

• Cooling: -15°C to +50°C
• Heating: -20°C to +24°C

Support

For customer support, contact Haier 24 hours a day, 7 days a week at 1300 729 948 or visit www.haier.com.
