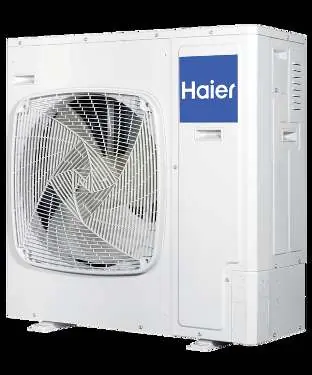

This document provides technical specifications and installation requirements for the Haier Smart Power Outdoor 1Phase unit (model 1UH090N1ERG). It serves as a quick reference for installers and users to verify performance data and physical dimensions.

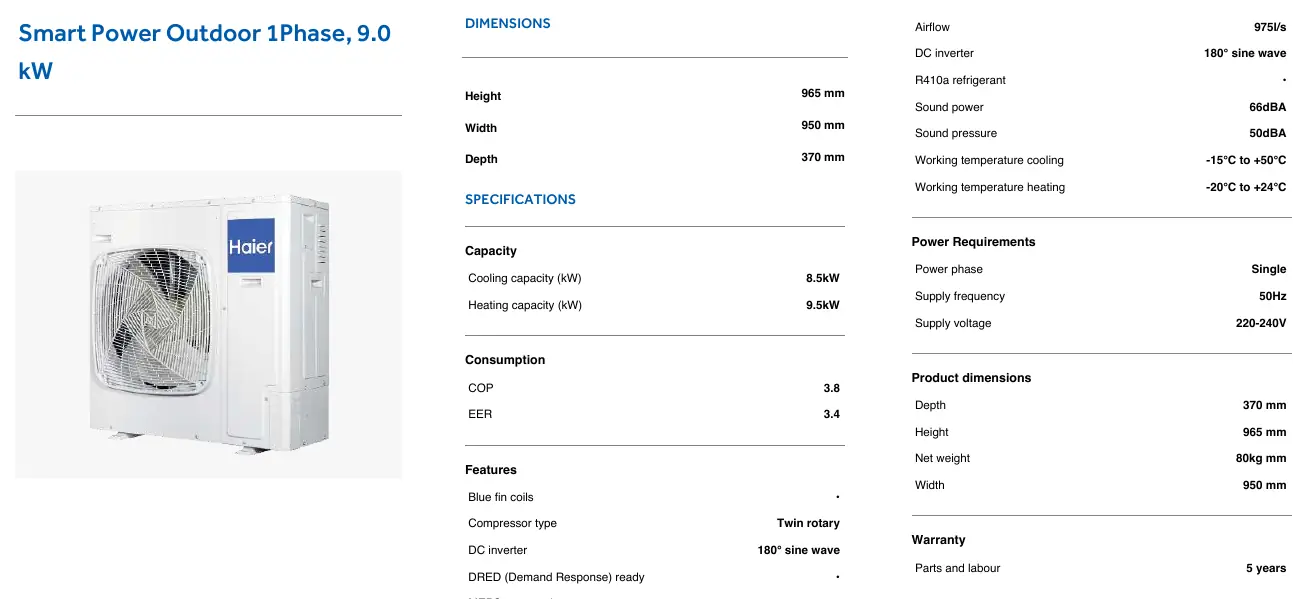

Technical specifications
- Cooling capacity: 8.5kW
- Heating capacity: 9.5kW
- COP: 3.8
- EER: 3.4
- Airflow: 975l/s
- Sound power: 66dBA
- Sound pressure: 50dBA
- Compressor type: Twin rotary
- Refrigerant: R410a
Installation requirements
- Dimensions: 965mm (H) x 950mm (W) x 370mm (D)
- Net weight: 80kg
- Liquid line: 9.52mm
- Suction line: 15.88mm
- Maximum indoor units: 1
Operating conditions
- Cooling temperature range: -15°C to +50°C
- Heating temperature range: -20°C to +24°C
- Power requirements: Single phase, 50Hz, 220-240V
Support
For customer support, contact 1300 729 948 or visit www.haier.com.
Official resources from the manual
Manufacturer information
Haier
Practical help
Before use
- Verify power supply is single phase 220-240V, 50Hz.
- Ensure installation location allows for dimensions 965x950x370 mm.
- Confirm compatibility with indoor unit (max 1 unit).
- Check that operating temperatures are within -15°C to +50°C for cooling or -20°C to +24°C for heating.
Model compatibility
- Maximum number of indoor units: 1.
- Refrigerant: R410a.
- Features Blue fin coils and DC inverter (180° sine wave).
