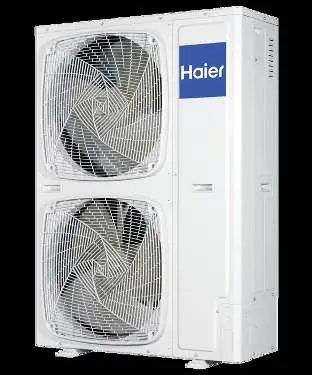

Haier 1UH160P1ERG Smart Power Outdoor 1Phase Quick Reference Guide
Quick reference guide for the Haier 1UH160P1ERG Smart Power Outdoor 1Phase unit. Includes technical specifications, dimensions, installation requirements, and operating temperature ranges.
Table of contents
Quick Reference Guide
This document provides essential technical specifications and installation data for the Haier 1UH160P1ERG Smart Power Outdoor 1Phase unit. It is intended for quick reference regarding the unit's capabilities, physical dimensions, and operational requirements.
Technical Specifications
- Cooling Capacity: 15.5kW
- Heating Capacity: 18kW
- COP: 3.5
- EER: 3.21
- Power Requirements: 220-240V, 50Hz, Single Phase
- Refrigerant: R410a
- Compressor Type: Twin rotary
- Features: Blue fin coils, DRED ready, MEPS approved
Installation and Dimensions
- Dimensions: 1350mm (H) x 950mm (W) x 370mm (D)
- Net Weight: 105kg
- Liquid Line: 9.52mm
- Suction Line: 15.88mm
- Maximum Indoor Units: 1
Operating Conditions
- Cooling Temperature Range: -15°C to +50°C
- Heating Temperature Range: -20°C to +24°C
- Sound Power: 73dBA
- Sound Pressure: 54dBA
Support
For further assistance, contact Haier Customer Support at 0800 372273 or visit haier.com. Additional documentation, including full installation guides and service manuals, is available on the manufacturer's website.
Official resources from the manual
Manufacturer information
Haier
Practical help
Before use
- Verify the power supply matches the 220-240V, 50Hz, Single Phase requirement.
- Ensure the installation location accommodates the unit dimensions (1350mm x 950mm x 370mm).
- Confirm the indoor unit is compatible with this outdoor model (max 1 indoor unit).
- Check that the operating environment falls within the specified temperature ranges (-15°C to +50°C for cooling, -20°C to +24°C for heating).
Specs in practice
- COP (Coefficient of Performance)
- Indicates the heating efficiency of the unit; higher values mean better efficiency.
- EER (Energy Efficiency Ratio)
- Indicates the cooling efficiency of the unit; higher values mean better efficiency.
- Sound Power/Pressure
- Measures the noise level emitted by the unit; 73dBA (power) and 54dBA (pressure) are standard operating levels.
