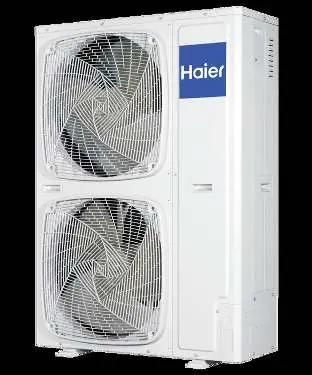

Haier 1UH140P1ERK Smart Power Outdoor 3 Phase Unit Quick Reference Guide

Quick reference guide for the Haier 1UH140P1ERK Smart Power Outdoor 3 Phase Unit. Includes technical specifications, dimensions, power requirements, and operating temperature ranges.

Table of contents

Quick guide from the manual

This document serves as a quick reference guide for the Haier 1UH140P1ERK Smart Power Outdoor 3 Phase Unit. It outlines the core technical specifications, power requirements, and physical dimensions necessary for installation and planning.

Technical Specifications

The unit is designed for high-performance climate control with the following capacities:

Cooling Capacity: 13.4 kW
Heating Capacity: 15.0 kW
Compressor Type: Twin rotary
DC Inverter: 180° sine wave
Refrigerant: R410a
Efficiency: COP 3.5, EER 3.3

Operating Conditions

The unit is rated for the following ambient temperature ranges:

Cooling: -15°C to +50°C
Heating: -20°C to +24°C

Installation Requirements

Liquid Line: 9.52 mm
Suction Line: 15.88 mm
Maximum Indoor Units: 1

Power Requirements

Power Phase: Three
Supply Voltage: 380-415V
Supply Frequency: 50/60Hz

Dimensions and Weight

Height: 1350 mm
Width: 950 mm
Depth: 370 mm
Net Weight: 108 kg

Support

For further assistance, 24/7 customer support is available at 0800 372273 or via the website at haier.com.

Official resources from the manual

Official resource haier.com

Manufacturer information

Haier

Brand profile

Manufacturer website https://www.haier.com Support https://www.haier.com

Practical help

Before use

Verify the power supply is 380-415V 3-phase, 50/60Hz.
Ensure the installation location can support the 108 kg net weight of the unit.
Confirm the refrigerant type (R410a) is compatible with the system design.
Check that the installation site meets the operating temperature range (-15°C to +50°C for cooling, -20°C to +24°C for heating).

Specs in practice

Cooling Capacity: 13.4 kW output for cooling mode.
Heating Capacity: 15.0 kW output for heating mode.
Sound Pressure: 53 dBA, indicating the noise level during operation.
