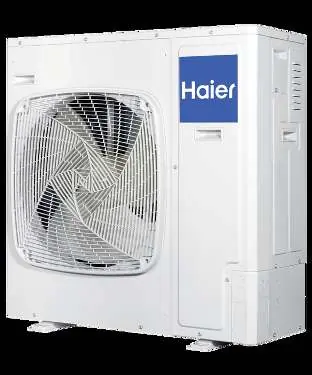

Quick Reference Guide for Haier 1UH105N1ERG Smart Power Outdoor Unit
Quick reference guide for the Haier 1UH105N1ERG Smart Power Outdoor unit. Includes technical specifications, dimensions, power requirements, and operating temperature ranges.
Table of contents
Quick guide from the manual
This document provides essential technical specifications and operational parameters for the Haier 1UH105N1ERG Smart Power Outdoor unit. It is intended for quick reference regarding installation requirements, performance capabilities, and physical dimensions.
Technical Specifications
- Cooling Capacity: 10.0 kW
- Heating Capacity: 10.4 kW
- COP: 3.5
- EER: 3.4
- Compressor Type: Twin rotary
- DC Inverter: 180° sine wave
- Refrigerant: R410a
Installation Requirements
- Liquid Line: 9.52mm
- Suction Line: 15.88mm
- Maximum Number of Indoor Units: 1
Operating Conditions
- Working Temperature (Cooling): -15°C to +50°C
- Working Temperature (Heating): -20°C to +24°C
- Airflow: 1115 l/s
- Sound Power: 68 dBA
- Sound Pressure: 52 dBA
Power Requirements
- Power Phase: Single
- Supply Frequency: 50Hz
- Supply Voltage: 220-240V
Dimensions and Weight
- Height: 965 mm
- Width: 950 mm
- Depth: 370 mm
- Net Weight: 82 kg
Warranty and Support
The unit includes a 5-year warranty for parts and labour. For customer support, contact Haier 24/7 at 1300 729 948 or visit www.haier.com.
Official resources from the manual
Manufacturer information
Haier
Practical help
Before use
- Verify power supply is single phase 220-240V, 50Hz.
- Ensure installation location allows for proper airflow.
- Check that refrigerant type R410a is compatible with the indoor unit.
- Confirm the system is designed for a single indoor unit configuration.
Specs in practice
- Cooling Capacity
- 10.0 kW nominal cooling output.
- Heating Capacity
- 10.4 kW nominal heating output.
- Operating Temperature (Cooling)
- Unit functions within ambient temperatures of -15°C to +50°C.
- Operating Temperature (Heating)
- Unit functions within ambient temperatures of -20°C to +24°C.
