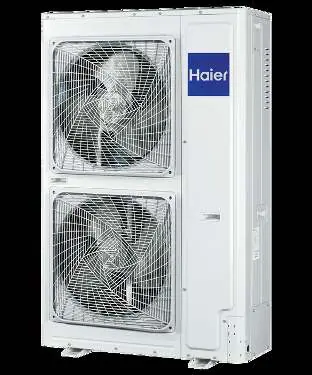

Haier 1UH200W1ERK Smart Power Outdoor Unit Quick Reference Guide
Quick reference guide for the Haier 1UH200W1ERK Smart Power Outdoor Unit. Includes technical specifications, dimensions, power requirements, and operating temperature ranges.
Table of contents
Quick guide from the manual
This document serves as a quick reference guide for the Haier 1UH200W1ERK Smart Power Outdoor Unit. It provides essential technical specifications, dimensions, and operational requirements for the device.
Technical Specifications
The unit is designed for high-capacity climate control with the following performance metrics:
- Cooling Capacity: 20.5 kW
- Heating Capacity: 22.8 kW
- COP: 3.8
- EER: 3.36
- Refrigerant: R410a
Dimensions
Ensure adequate space for installation based on the following dimensions:
- Height: 1635 mm
- Width: 1050 mm
- Depth: 400 mm
Power Requirements
The unit requires a three-phase power supply:
- AMP draw: 15.3A
- Supply frequency: 50/60Hz
Operating Conditions
The unit is rated for the following ambient temperature ranges:
- Cooling: -15°C to +50°C
- Heating: -20°C to +24°C
Features
- Blue fin coils
- DC inverter (180° sine wave)
- DRED (Demand Response) ready
- MEPS approved
Warranty and Support
The product includes a 5-year warranty for parts and labour. For support, contact Haier at 0800 372273 or visit haier.com.
Official resources from the manual
Manufacturer information
Haier
Practical help
Before use
- Verify power supply is three-phase 50/60Hz.
- Ensure installation location allows for dimensions of 1635 x 1050 x 400 mm.
- Confirm operating temperature range is suitable for the environment (-15°C to +50°C for cooling, -20°C to +24°C for heating).
Specs in practice
- Cooling Capacity
- 20.5 kW output for cooling mode.
- Heating Capacity
- 22.8 kW output for heating mode.
