Hampton Bay 16-Inch Stand Fan

Product Overview

The Hampton Bay 16-inch stand fan is designed for household use to provide efficient air circulation. It features an adjustable height, oscillation control, and three speed settings to suit your comfort needs.

Safety Instructions

Read all instructions carefully before use.

• This appliance uses a polarized plug to reduce the risk of electric shock. If it does not fit, contact a qualified electrician.
• Do not use with any solid-state speed control device.
• The product includes overload protection via a fuse in the plug. If the fuse blows, unplug the unit and replace it with a 2.5 Amp, 125 Volt fuse. If the replacement blows, discontinue use and contact support.
• Keep out of reach of children. Do not leave the fan running unattended.
• Do not operate with a damaged cord or plug.
• Do not use in windows or areas where rain may create an electrical hazard.
• Ensure the fan is placed on a stable surface to prevent overturning.

Assembly

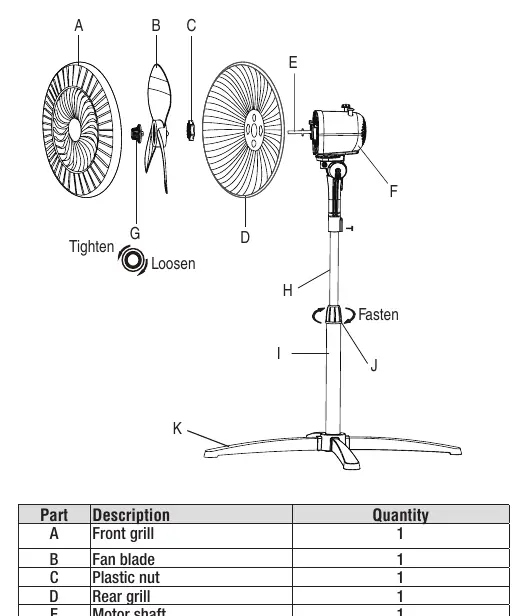

The fan requires assembly of the cross stand, column unit, and head unit. Ensure the pole is securely installed in the connector and that all four stand legs are firmly fixed. The head unit attaches to the internal pole and is secured with a thumb screw. The front and rear guards must be aligned and snapped together until a click is heard, followed by securing the self-locking mechanism.

Operation

• Speed Control: Use the knob switch to select between 0 (Off), 1 (Low), 2 (Medium), and 3 (High).
• Oscillation: Push down or pull up the clutch knob on the motor housing to start or stop oscillation.
• Airflow Direction: Gently push the grilles to adjust the tilt angle.
• Height Adjustment: Loosen the height adjustment ring, adjust the pole to the desired height, and firmly re-tighten.

Maintenance and Cleaning

Always unplug the fan before cleaning. Wipe the enclosure and guard with a slightly damp cloth. Do not allow water or other liquids to enter the motor housing. The rotor guard should not be disassembled for cleaning.
