Installation Guide for Hilti SDK-FV 8x110 Fastener
Quick installation guide for the Hilti SDK-FV 8x110 insulation fastener. Includes drilling specifications, embedment depth, and step-by-step mounting instructions.
Quick answers from the manual
Quick answer
- The Hilti SDK-FV 8x110 is an insulation fastener. Installation requires an 8 mm drill bit, a 50 mm drill depth, and is suitable for insulation up to 30 mm thick. p. 1
Key actions
- Drill an 8 mm hole to a depth of 50 mm. p. 1
- Insert the anchor into the hole. p. 1
- Drive the pin into the anchor to secure it. p. 1
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Drill diameter | 8 mm | Required drill bit size | p. 1 |
| Drill depth | 50 mm | Minimum depth of the hole | p. 1 |
| Max insulation thickness | 30 mm | Maximum thickness of material to be fastened | p. 1 |
Where to find it in the PDF

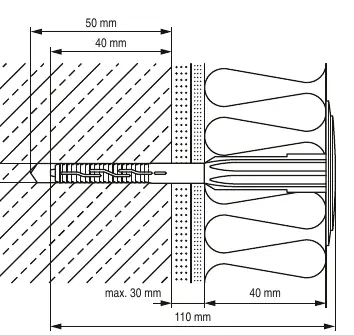

- Installation Diagram p. 1
Table of contents
Quick guide from the manual
This document provides installation instructions for the Hilti SDK-FV 8x110 insulation fastener. Follow these steps to ensure proper installation.
Installation Steps
- Drill the hole: Use an 8 mm drill bit to create a hole with a minimum depth of 50 mm.
- Insert the anchor: Place the SDK-FV anchor into the drilled hole.
- Secure the fastener: Drive the pin into the anchor to expand and secure it in place.
Technical Specifications
- Drill diameter: 8 mm
- Drill depth: 50 mm
- Embedment depth: 40 mm
- Maximum insulation thickness: 30 mm
- Total fastener length: 110 mm
Manufacturer information
Hilti Corporation
Practical help
Before use
- Ensure the drill bit diameter is exactly 8 mm.
- Verify that the drill depth is at least 50 mm.
- Check that the insulation thickness does not exceed 30 mm.
Specs in practice
- Drill diameter
- The required size of the drill bit (8 mm).
- Embedment depth
- The depth at which the anchor is secured in the wall (40 mm).
- Max insulation thickness
- The maximum thickness of the insulation material the fastener can accommodate (30 mm).
