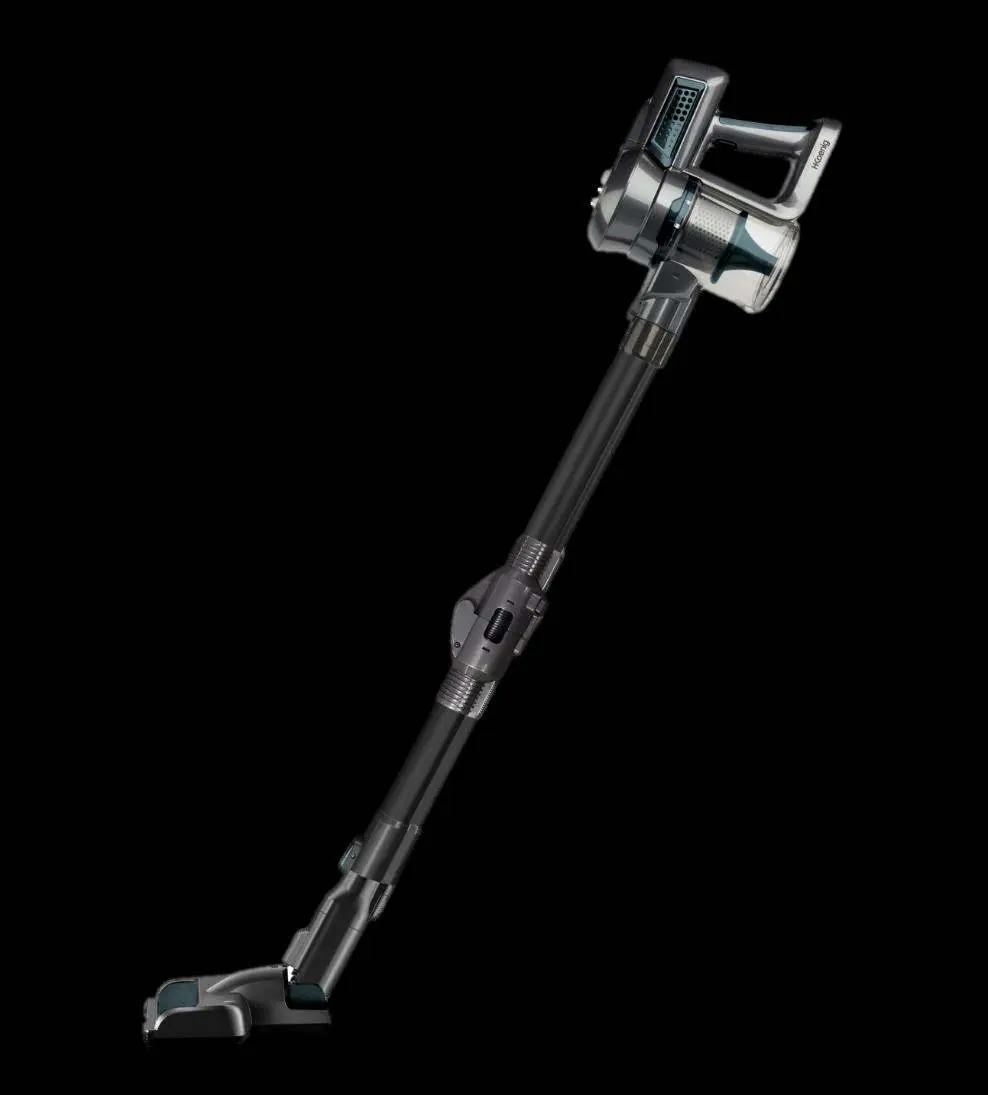

HKoenig 069DN 2-in-1 Foldable Vacuum Cleaner User Manual
Quick guide for the HKoenig 069DN 2-in-1 foldable vacuum cleaner, covering assembly, operation, battery charging, dust cup maintenance, and filter cleaning.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
This document provides essential instructions for the HKoenig 069DN 2-in-1 foldable vacuum cleaner. It is designed for domestic dry vacuuming only. Do not use on wet surfaces, concrete, or rough surfaces. Ensure the battery is charged before use and follow all safety precautions regarding electrical and battery handling.
Device description

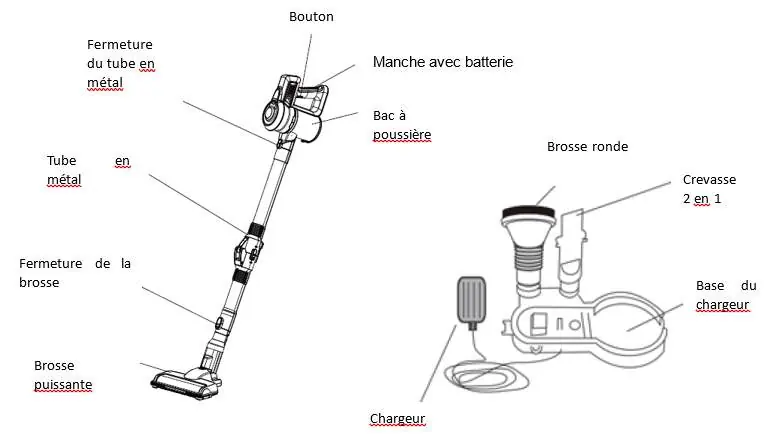

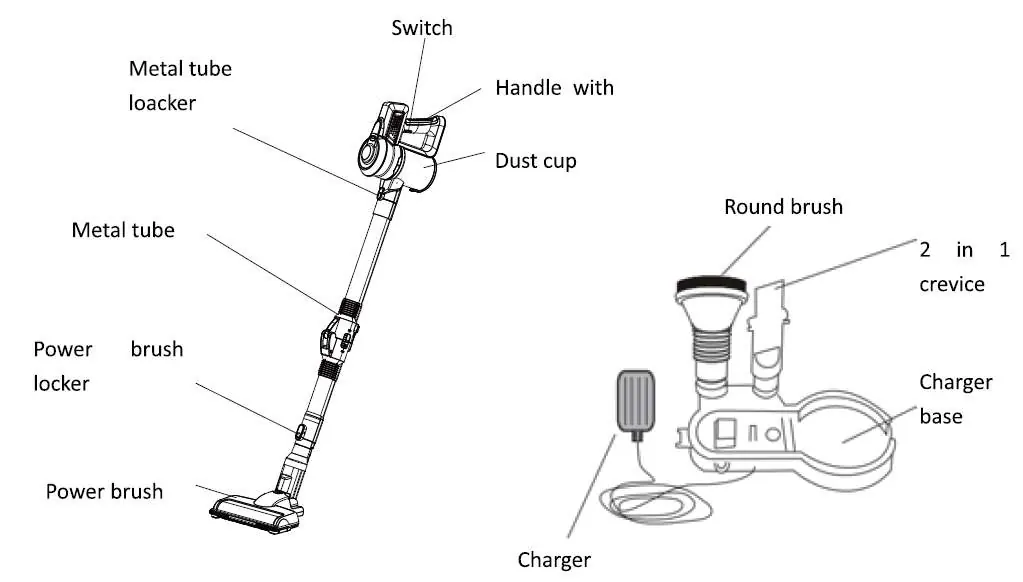

The vacuum cleaner consists of a main body with a dust cup, a foldable metal tube, a power brush, and various accessories including a 2-in-1 crevice tool and a round brush. It features a two-level power control switch.
Assembly and first use

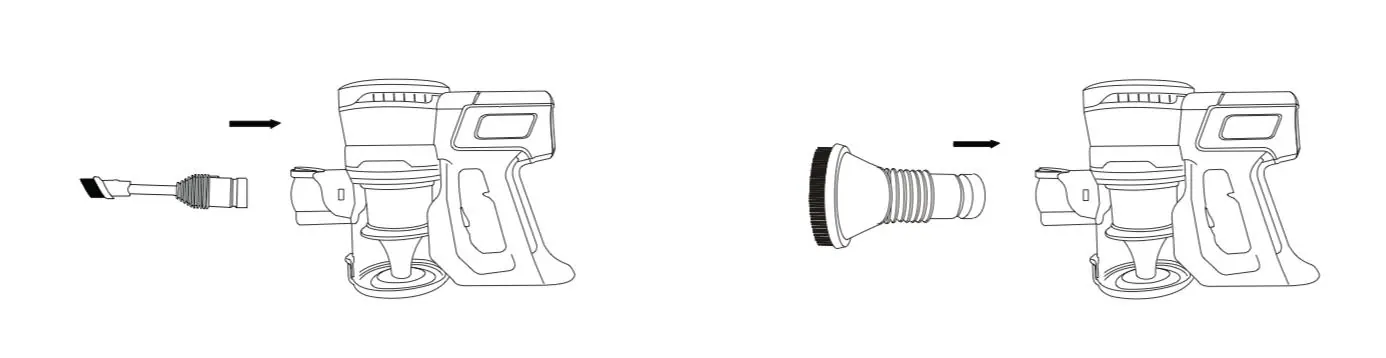

1. Assemble the battery into the dust cup, ensuring the battery bolt head is correctly inserted into the dust cup slot. 2. Attach the metal tube to the main body until you hear a click. 3. Attach the power brush to the other end of the metal tube. 4. To use as a handheld vacuum, insert the desired accessory (crevice tool or round brush) directly into the main body.
Operation

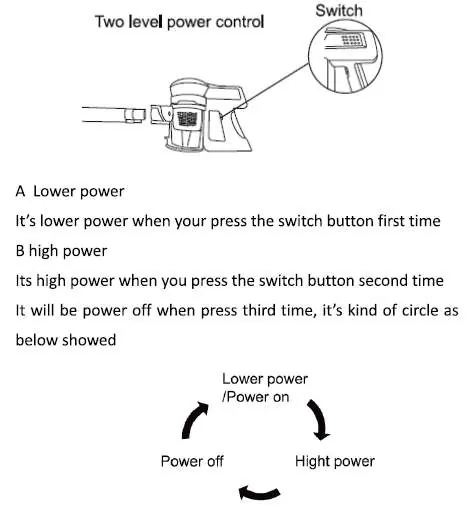

Press the switch button to operate the device: 1st press for low power, 2nd press for high power, and 3rd press to turn the device off.
Battery charging
When the battery power indicator blinks, power off the device and place it back on the charging base. A full charge takes approximately 4 hours.
Maintenance
To empty the dust cup: Press the metal tube locker to remove the tube, unlock the dust cup locker, and empty the contents. To maintain the filter: 1. Remove the battery. 2. Open the dust cup. 3. Remove the filter case and the filter. 4. Wash the filter case and HEPA filter. 5. Dry both components completely before reassembling.
Troubleshooting
If the vacuum is not cleaning well, empty the dust bin, check that the bin and filter are correctly fitted, or clean the filter. If the device stops working, charge the battery or clear debris from the brush bar. If the battery will not charge, check the connections and the wall socket.
Technical specifications
Battery: 22.2V/2200mA. Charging time: 4 hours. Usage time: 35 min (low speed), 25 min (high speed). Power: 120W. Net weight: 2.8kg.
Manufacturer information
H.Koenig
Practical help
Common problems
Empty the dust bin, ensure the bin and filter are correctly fitted, or clean the filter.
Charge the battery or clear debris from the brush bar.
Check the charging connections and the wall socket.
Before use
- Ensure the battery is fully charged.
- Check that the dust cup is correctly fitted.
- Ensure the filter is clean and properly installed.
- Verify the charger cord is not damaged.
- Ensure the surface to be cleaned is dry.
Specs in practice
- Charging period
- Approximately 4 hours for a full charge.
Images and diagrams

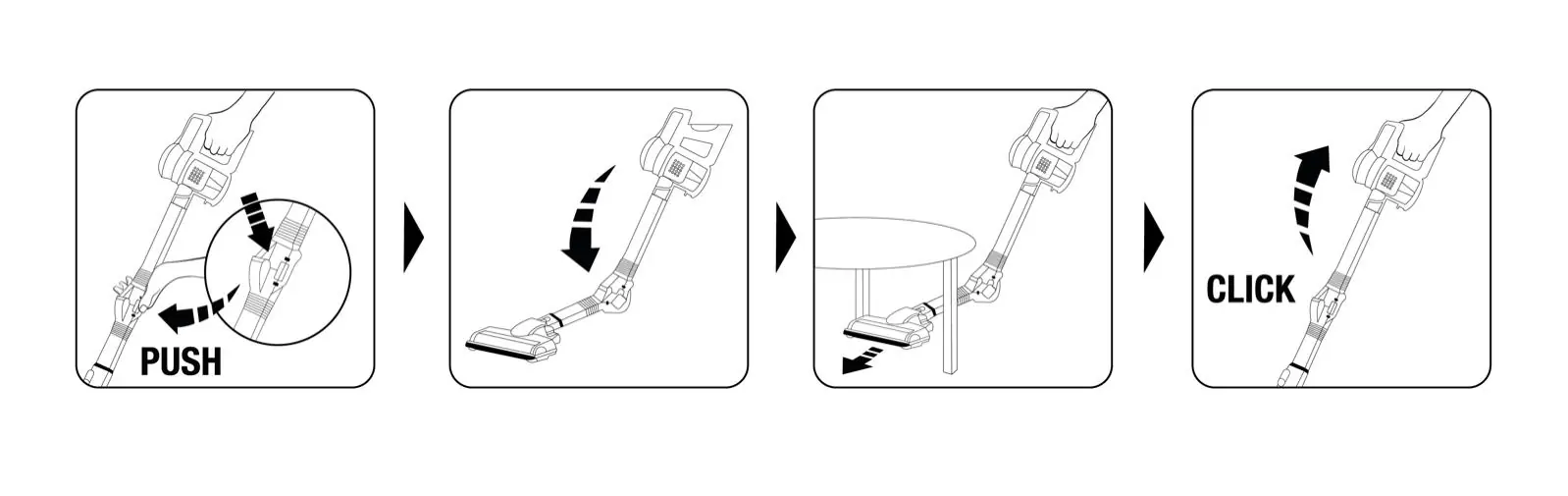

- The vacuum features a foldable metal tube for easier storage and access.
- The battery is detachable from the dust cup for charging.
- The power switch controls two levels of suction power.
Model compatibility
- Designed for domestic dry vacuuming only.
- Do not use on concrete, tarmacadam, or other rough surfaces.
- Do not pick up liquids or wet substances.
