HobbyZone AeroScout S 2 1.1m Instruction Manual

Product Overview

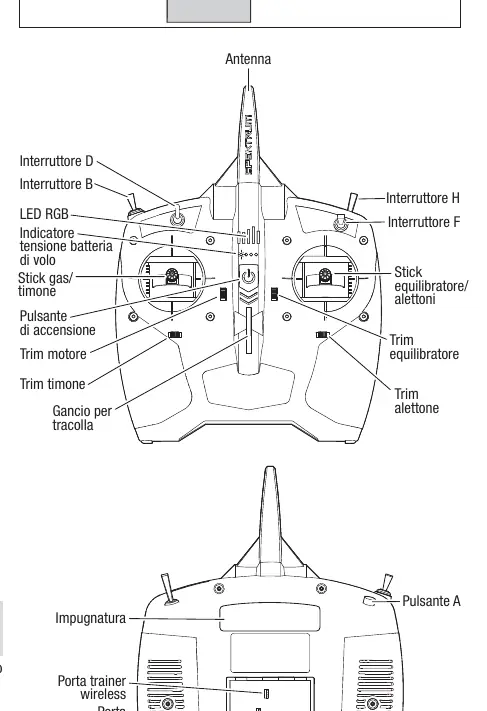

The HobbyZone AeroScout S 2 1.1m is a sophisticated RC aircraft designed for hobbyists. It features advanced SAFE (Sensor Assisted Flight Envelope) technology, which provides flight stability and recovery modes to assist pilots of various skill levels. The aircraft is equipped with a brushless motor and a smart electronic speed control (ESC) system that provides real-time telemetry data to compatible Spektrum transmitters.

Safety Precautions

This is not a toy and is recommended for users aged 14 and older. Always maintain a safe distance from the model during operation. Ensure the aircraft is flown in open areas free from obstacles, vehicles, and people. Never operate the model with damaged wiring or low transmitter batteries. Always keep the aircraft in sight and under control. Disconnect the flight battery after use to prevent over-discharge and potential fire hazards.

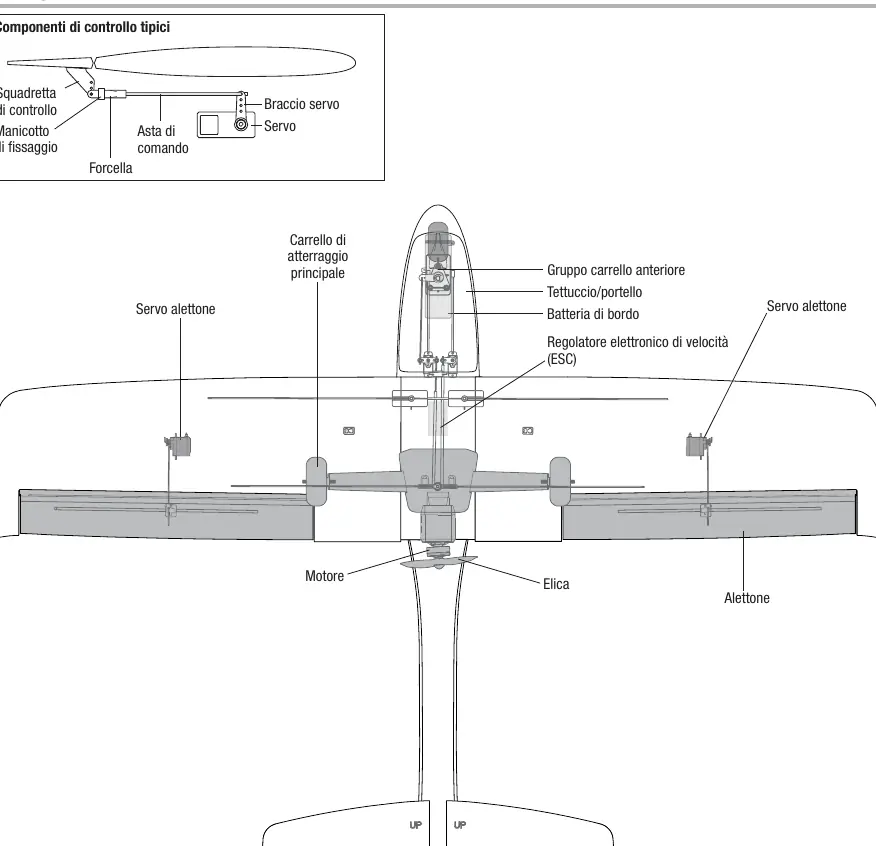

Assembly and Setup

The AeroScout S 2 1.1m requires assembly of the landing gear, horizontal tail, and wings. Ensure all components are securely fastened. The center of gravity (CG) is critical for flight performance and must be balanced 60–75 mm behind the leading edge of the wing root. Before the first flight, perform a control direction test and a range check to ensure the radio system is functioning correctly.

Flight Operation

The aircraft features three flight modes: Beginner, Intermediate, and Experienced. Beginner mode limits pitch and roll angles and provides self-leveling. Intermediate mode offers a wider flight envelope with less restriction. Experienced mode provides full control with no flight envelope limits. A panic recovery button is available to return the aircraft to level flight if orientation is lost.

Maintenance and Troubleshooting

Regular maintenance includes checking for loose screws, damaged control surfaces, and ensuring the propeller is secure. If the aircraft does not function correctly, check the transmitter-receiver connection, battery charge levels, and ensure the control surfaces are centered. For advanced issues, refer to the troubleshooting guide provided in the manual. Always store the LiPo battery at a partial charge when not in use for extended periods.
