Honeywell D770 8V 0.5A Transformer User Guide
Quick start guide for the Honeywell D770 8V 0.5A transformer, covering installation steps and technical specifications for proper setup.
Table of contents
Quick guide from the manual
This document provides essential instructions for the installation of the Honeywell D770 8V 0.5A transformer. It is intended for users performing the physical mounting and wiring of the device to a 220-240V power source.
Installation

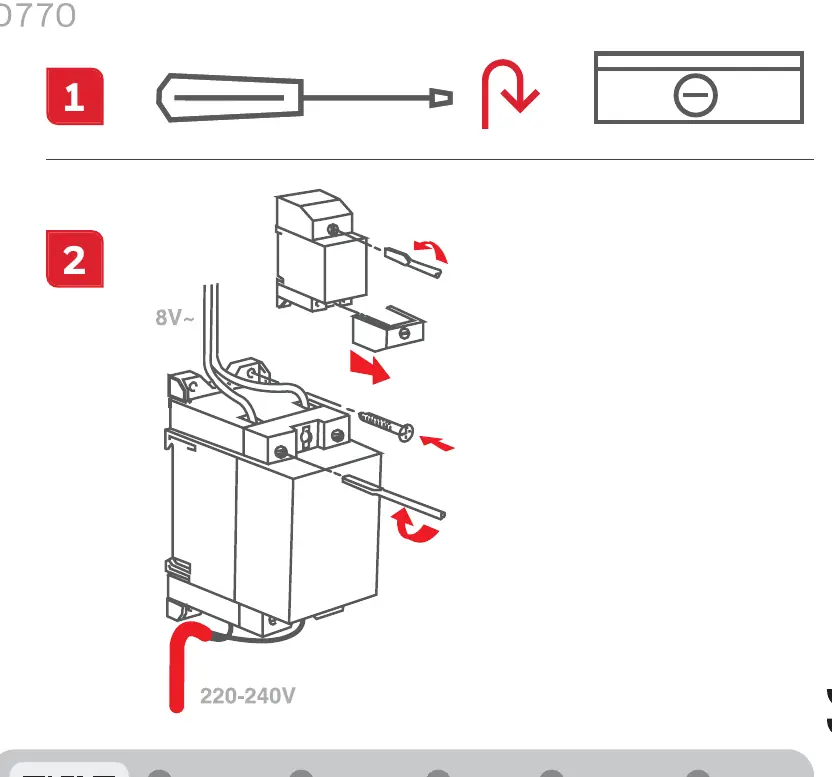

The installation process involves securing the transformer and connecting the electrical inputs and outputs. Ensure all power is disconnected before beginning.
- Use a screwdriver to loosen or tighten the terminal screws as required for your wiring configuration.
- Mount the transformer securely.
- Connect the 220-240V power supply to the primary side of the transformer.
- Connect the 8V output side to your low-voltage device.
Technical specifications
- Model: D770
- Input voltage: 220-240V
- Output voltage: 8V
- Output current: 0.5A
Support
For further assistance or troubleshooting, please visit the official website at livewell.honeywell.com.
Official resources from the manual
Manufacturer information
Honeywell International Inc.
Practical help
Common problems
Verify that the 220-240V input connections are secure and that the transformer is correctly mounted.
Before use
- Ensure the power supply is disconnected before starting installation.
- Verify that the input voltage matches the 220-240V rating.
- Check that the output device is compatible with 8V.
- Have a screwdriver ready for terminal connections.
