Honeywell D780S 8V 1.0A Transformer Quick Start Guide
Quick start guide for the Honeywell D780S 8V 1.0A transformer. Includes installation steps and wiring diagrams for 220-240V input.
Table of contents
Quick Start Guide
This guide provides essential installation steps for the Honeywell D780S 8V 1.0A transformer. Ensure all electrical work is performed in accordance with local safety regulations.
Installation
- Preparation: Unpack the transformer unit and ensure all components are present.

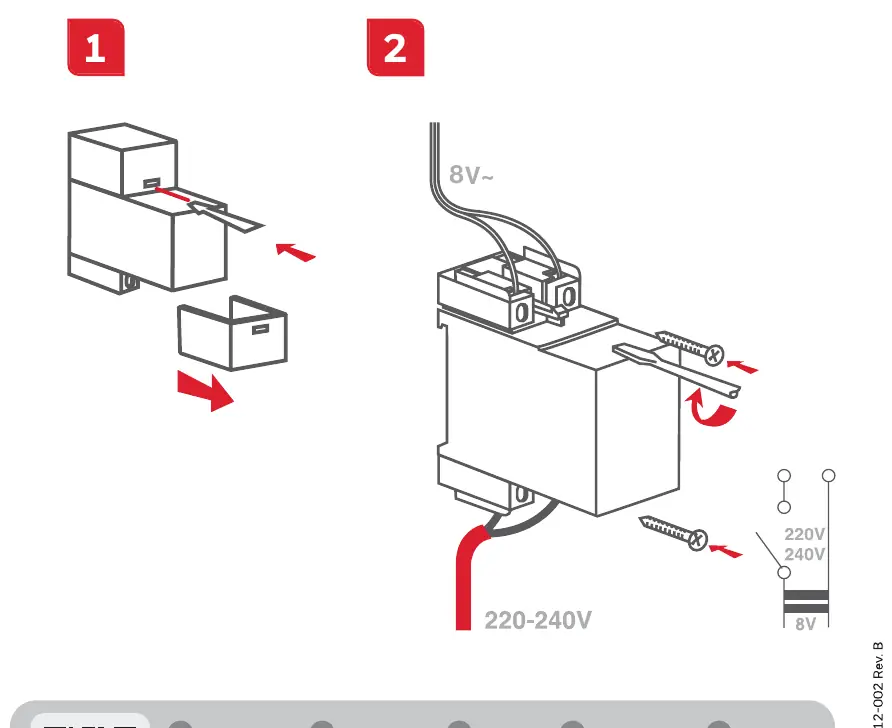

- Wiring: Connect the 220-240V power supply wires to the input terminals of the transformer.
- Output Connection: Connect the 8V output wires to your compatible device.
- Mounting: Secure the unit using the provided mounting points as shown in the diagram.
Technical Support
For further assistance or troubleshooting, visit livewell.honeywell.com.
